Great bike for cruising around. Plenty of speed without feeling out of control.
Dart20
CLASS-2 E-MOTOR BIKE
CODE:GET100OFF
48V 10Ah | 750W MOTOR
20MPH TOP SPEED
UP TO 40 MILE RANGE
20" x 4.0" WHEELS
Dart20
CLASS-2 E-MOTOR BIKE
CODE:GET100OFF
Class 2 E-BIKE REGULATIONS
| E-BIKE AND OCEV CLASS SYSTEM | PEDAL ASSIST (TOP SPEED) | THROTTLE | STREET LEGAL* | AGE RESTRICTION** |
|---|---|---|---|---|
| CLASS 1 E-BIKE | 20 MPH | NO | YES | NONE |
| CLASS 2 E-BIKE | 20 MPH | YES | YES | NONE |
| CLASS 3 E-BIKE | 28 MPH | NO | YES | 16+ |
| OCEV (OUT-OF-CLASS ELECTRIC VEHICLE) | 28+ MPH | YES | NO | 18+ |
*E-BIKE LAWS AND REGULATIONS CAN DIFFER BY STATE AND COUNTY, PLEASE FAMILIARIZE YOURSELF WITH THE SPECIFIC LAWS IN YOUR AREA.
**AGE RESTRICTIONS FOR E-BIKES MAY DIFFER BY LOCATION, BE SURE TO REVIEW YOUR LOCAL LAWS TO STAY COMPLIANT

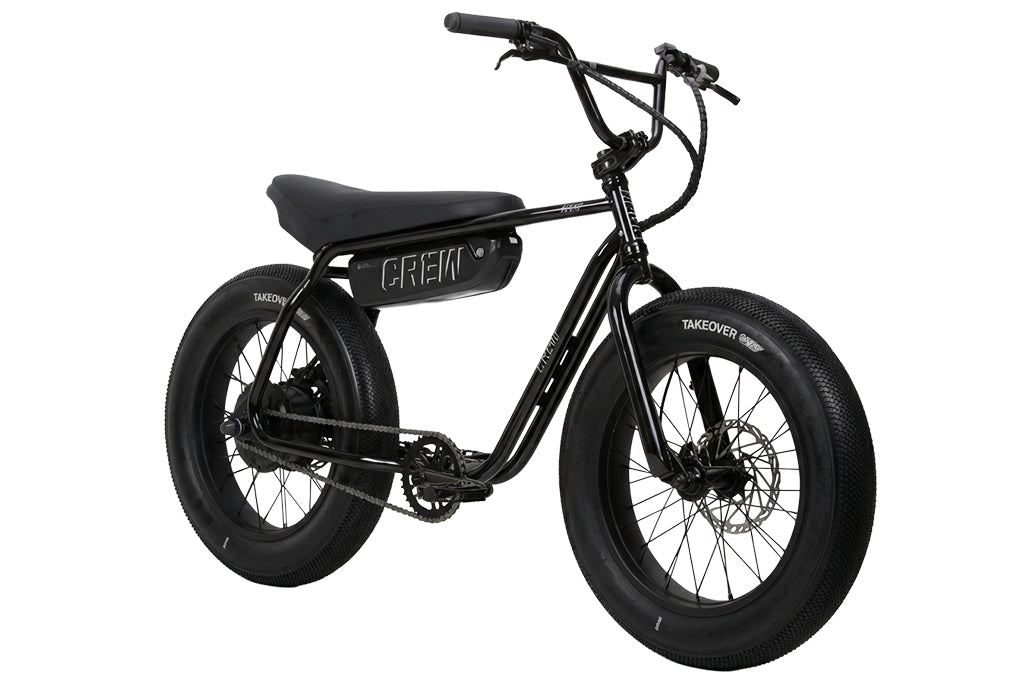

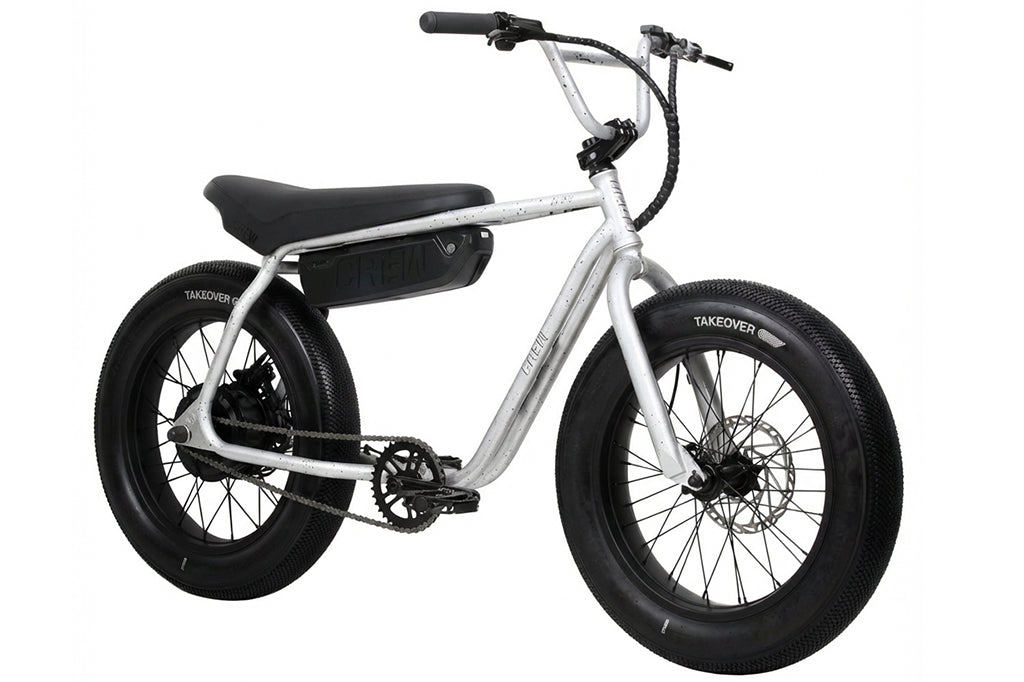

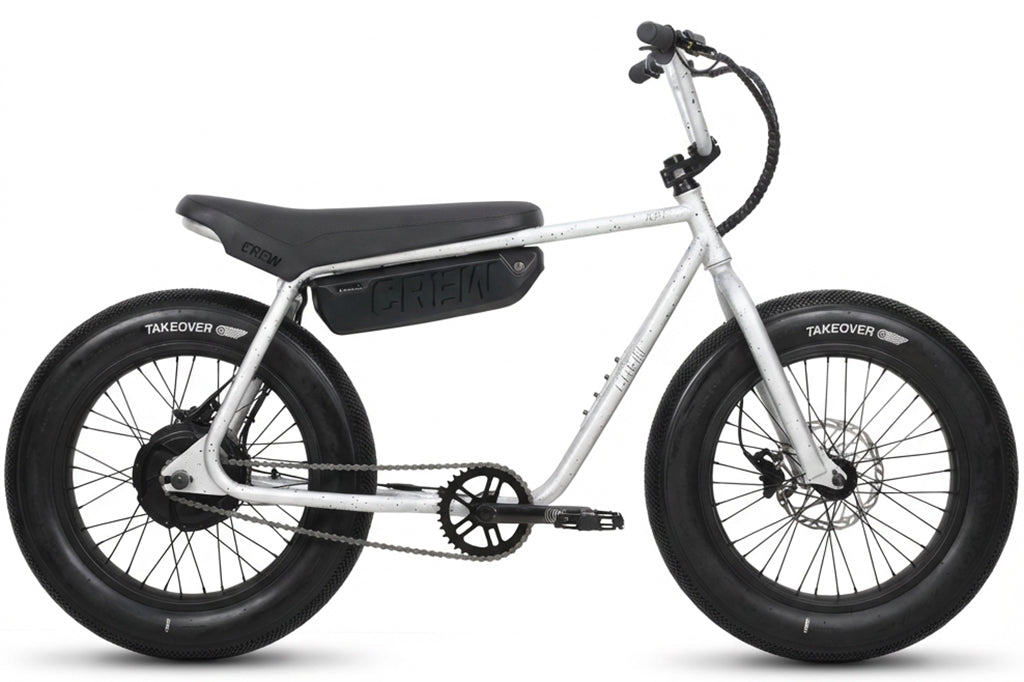

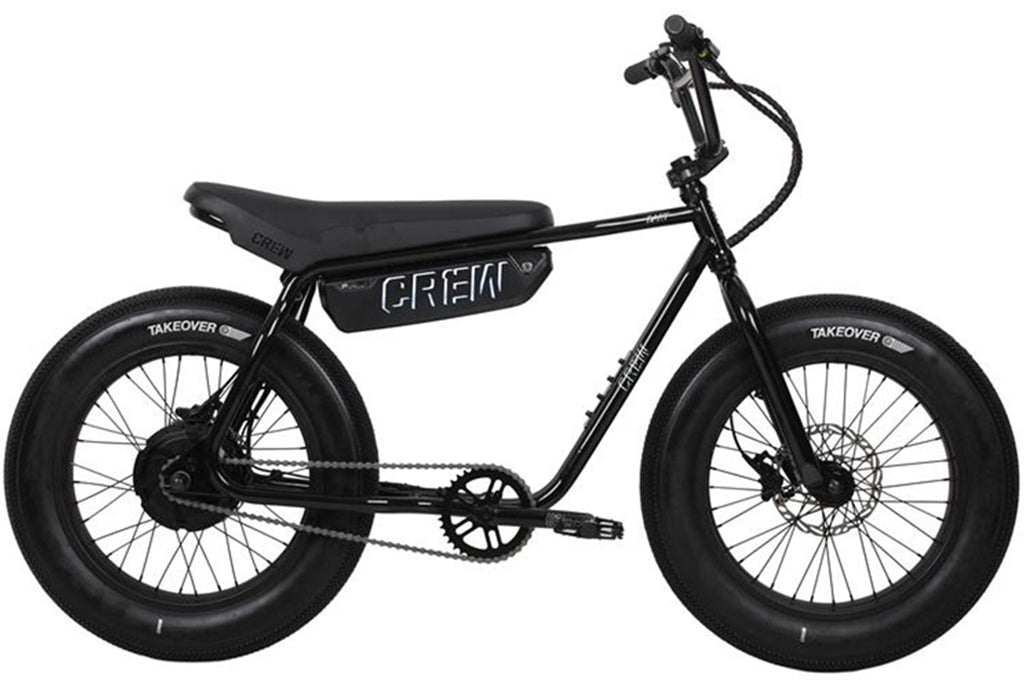

Crew Dart20
The Crew Dart V3 20" brings all the upgrades of the 24" model into a tighter, more compact build. Same bike life energy. Just built for riders who want more control without giving up performance. Class 2 compliant for a safe and legal ride. With a top speed of 20mph and a range up to 20 miles using throttle, and 25–35 miles with pedal assist, the Dart 20 delivers the power and versatility you need to ride farther, cruise longer, and stay in control.

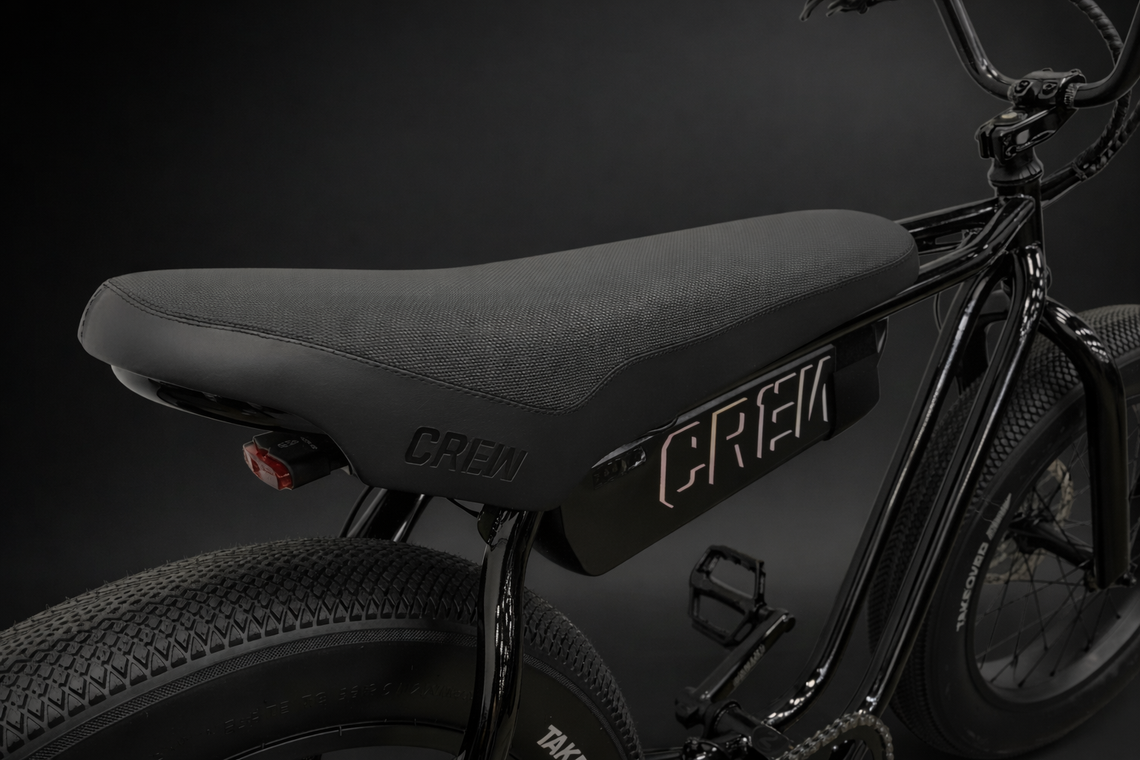

The compact 20" setup offers a lower standover and a more agile, easy-to-handle feel, making it perfect for tighter spots and technical riding. An upgraded chromoly steel frame with refined geometry delivers a stable, responsive ride, while the new bench-style saddle improves comfort and balance with a clean, locked-in feel for longer sessions.

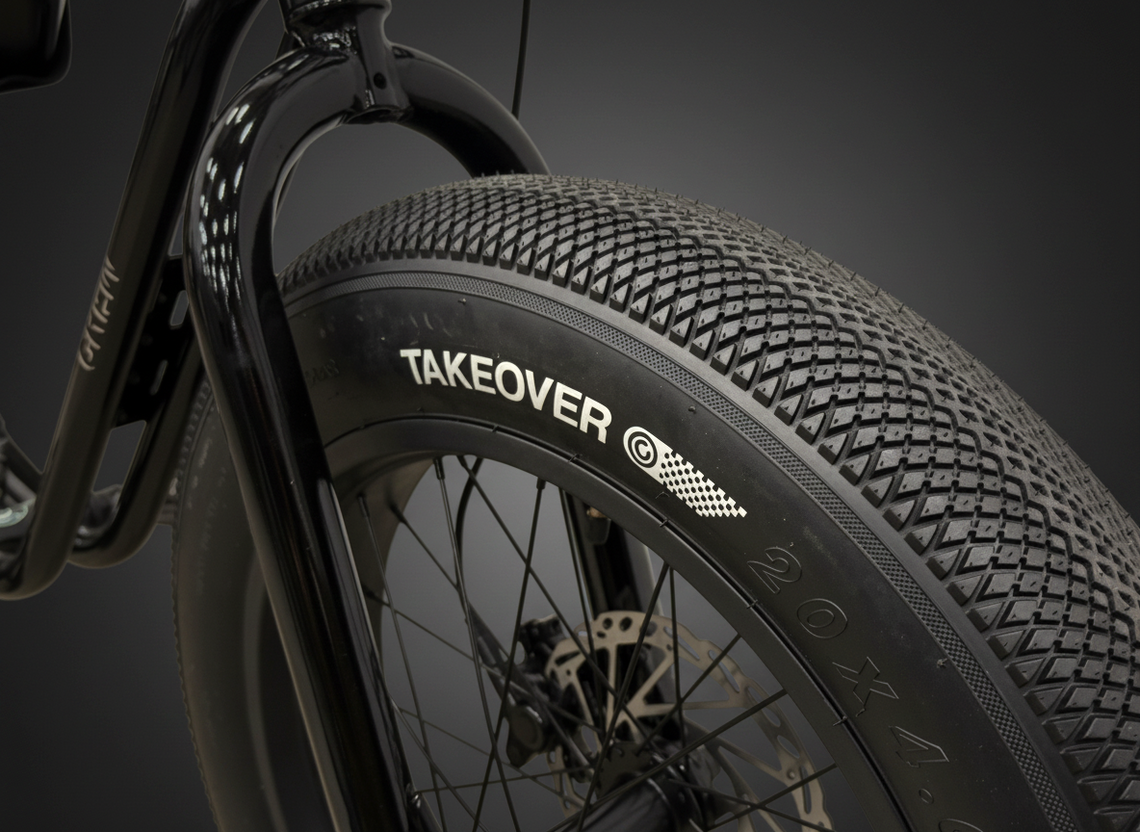

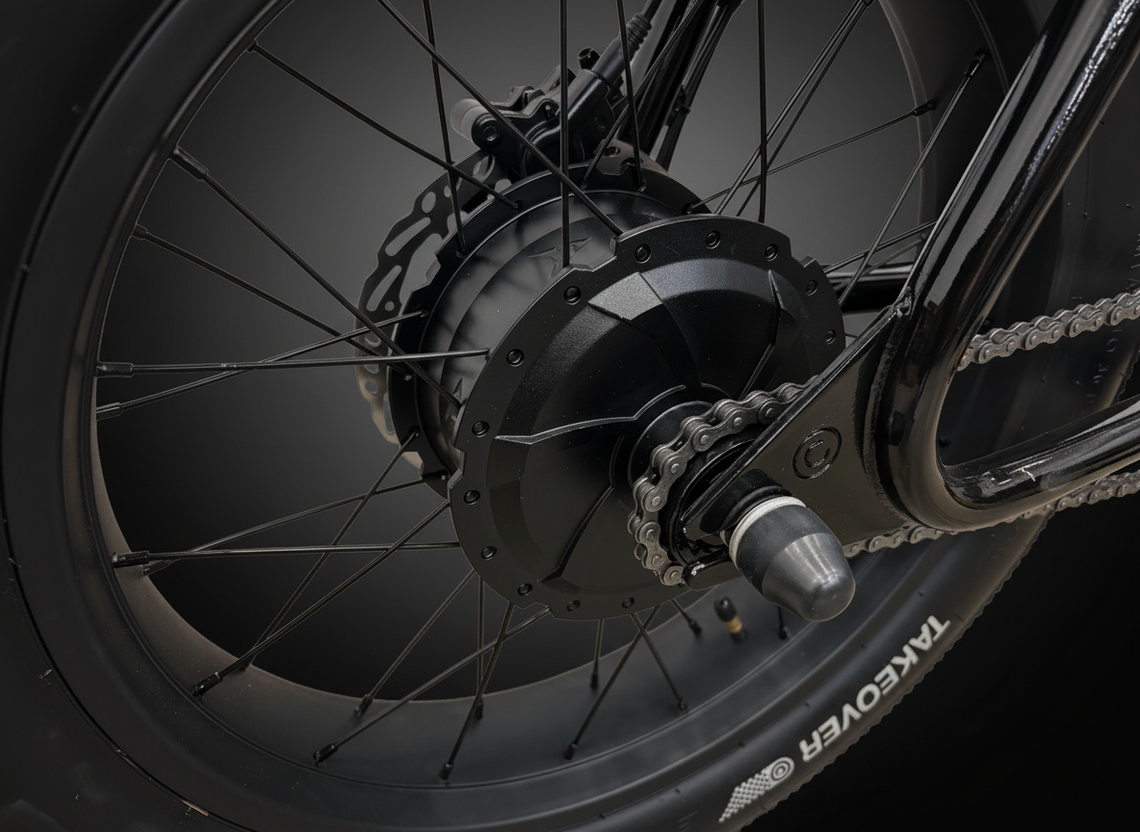

A 750w rear hub motor paired with a 48v / 10Ah battery delivers smooth, punchy power, backed by hydraulic disc brakes for confident stopping control. Fat 20" x 4.0" Crew Takeover Tires add grip, shock absorption, and street-ready style—making the Dart V3 20" a powerful, approachable choice for everyday rides and full ride-outs.
| Frame: | Chromoly 20” Loop Tail |
|---|---|
| Fork: | Chromoly 20” |
| Crank: | Crew Chromoly 155mm, 36t Chainring |
| Headset: | 1-1/8" Sealed Bearings |
| Wheelset: | 20" Double Wall Rim, Sealed Bearing Hub |
| Chain: | KMC 1/8" Heavy Duty |
| Freewheel: | Chromoly 16t |
| Seat: | Crew Bench Style Seat |
| Stem: | BMX 22.2mm Clamp, 50mm |
| Handlebars: | Crew MK2-Narrow 2-PC Chromoly, 6.8” Rise, 680mm width, 22.2mm clamp |
| Brakes: | Hydraulic Disc Brakes, F: 180mm Rotor / R: 160mm Rotor |

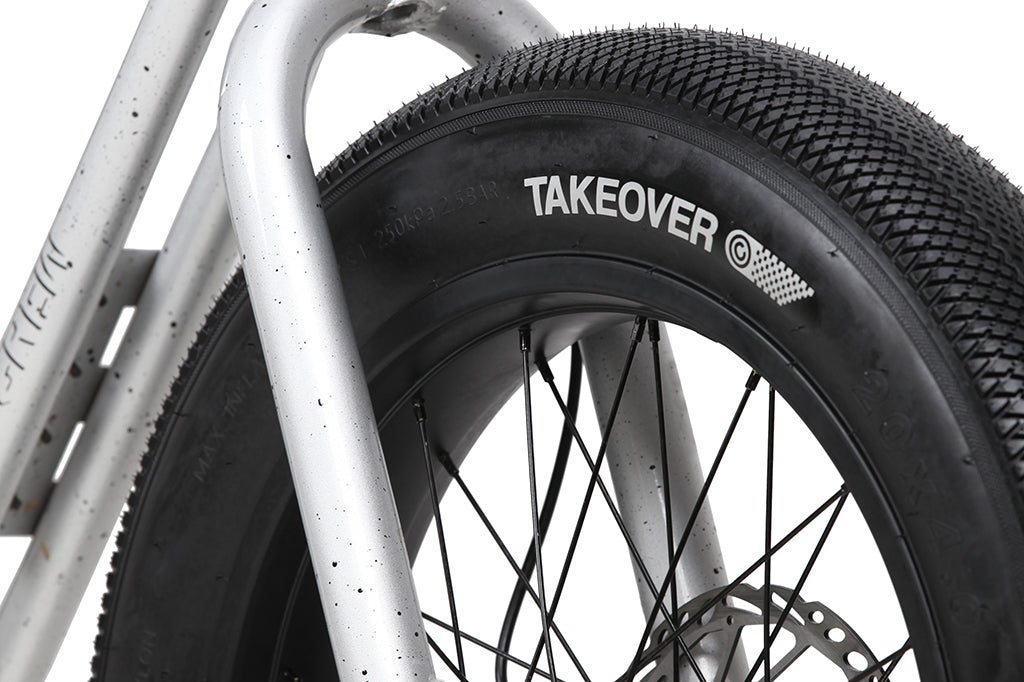

| Tires: | Crew Takeover 20” × 4.0” Fat Tire |
|---|---|
| Battery: | 48V 10Ah Lithium-ion |
| Motor: | 750W Hub Motor |

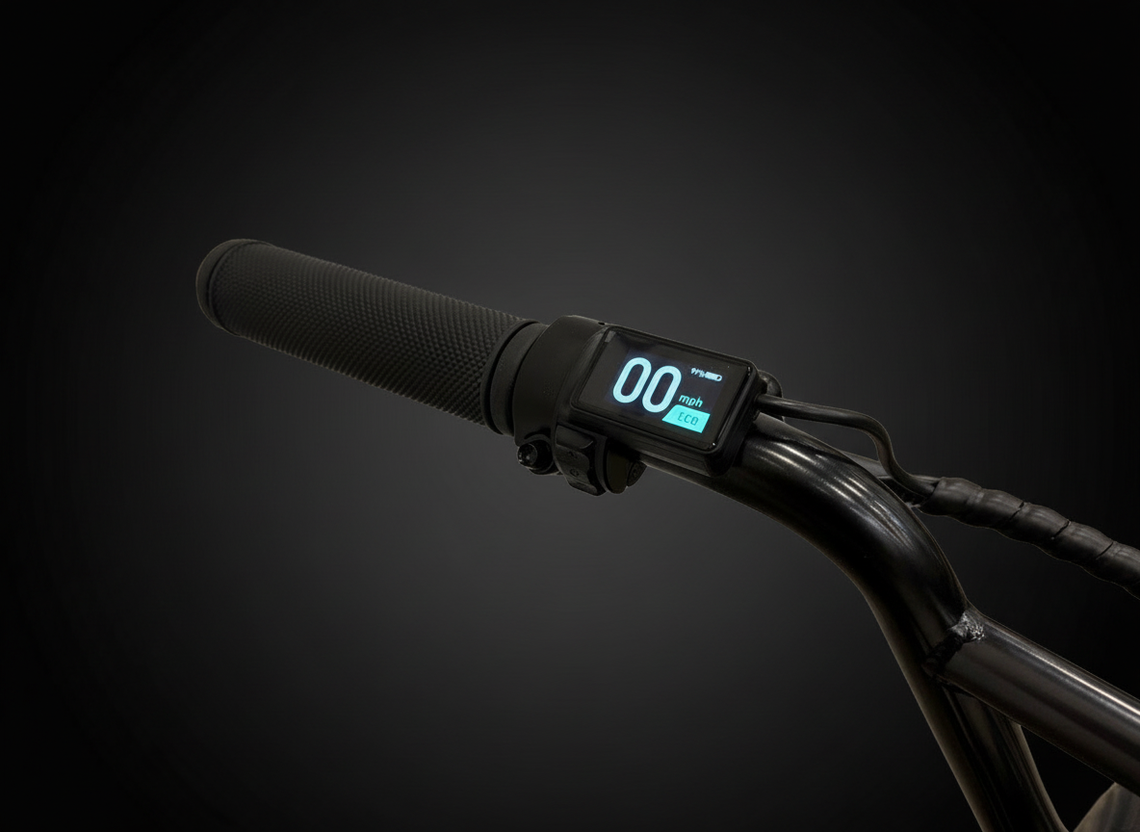

| Display: | 48V LCD Display |
| Throttle Style: | Thumb Throttle |
| Controller: | 48V 750W, 3 Modes – Eco, Sport, Race |
| Sensor: | Pedal Cadence Sensor |
| Range: | Up to 20 miles (throttle). Up to 40 miles depending on PAS mode and terrain |
| Speed: | 20 MPH |
| Charger: | 48V 2A Charger |
| Lights: | Rear LED Taillight |
| Weight: | 61 lbs |
All bikes purchased through Crew Bike Co. MUST be assembled
by a certified bike shop mechanic. If the bike is NOT built by a certified bike
shop mechanic, any warranty will be VOID. We will request for an assembly
receipt as proof of professional installation.
For all warranty claims, please contact our
Warranty Team at support@crewbikeco.com.
So that we can help you in a timely manner, make sure to include the following:
1.Order Number (we will confirm date of purchase and determine if the item
is still under the manufacturer’s warranty time limit)
2.Brief description of the claim
3.Photographs
4. If the item is a bike or frame, include the serial number
We evaluate all warranties case-by-case to determine the
best course of action and get you serviced to the best of our ability!
Warranty does not apply to the following:
• Any part of a product that has
been installed, altered, repaired, or misused
• Damage from unintended style of
riding, abuse, neglect, accident, and racing
• Normal wear and tear of any
product (including but not limited to - saddles, grips, tires, tubes, cables,
brake pads, chains)
• Failure to provide regular
maintenance of any product
Labor and shipping are the responsibility of the
customer. We do not cover parts purchased and labor performed by another bike
shop.
Note: Warranty is for original owner only.
