Pre-order now! Estimated to ship end of January.

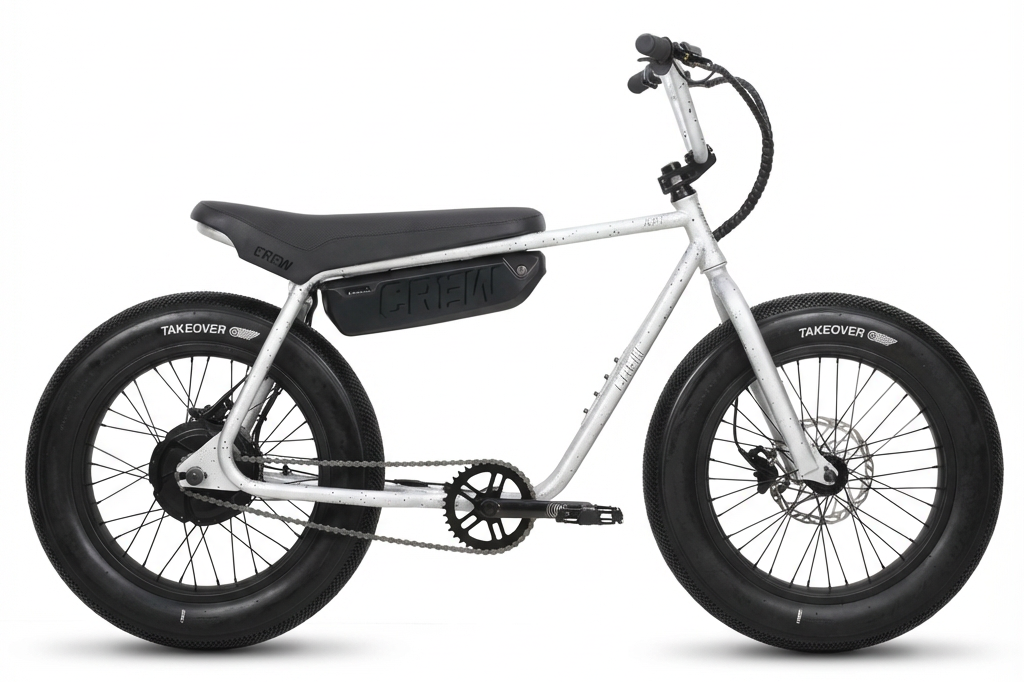

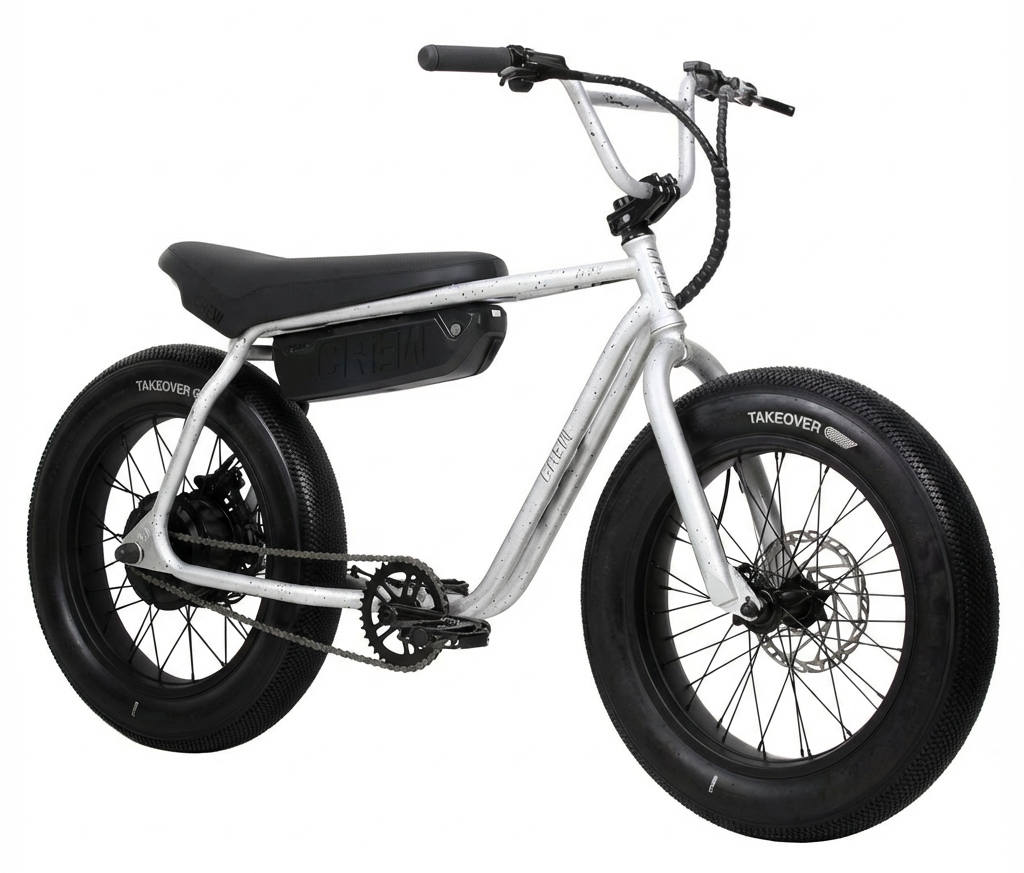

Crew Dart20
The Crew Dart V3 20" brings all the upgrades of the 24" model into a tighter, more compact build. Same bike life energy. Just built for riders who want more control without giving up performance. Class 2 compliant for a safe and legal ride. With a top speed of 20mph and a range up to 20 miles using throttle, and 25–35 miles with pedal assist, the Dart 20 delivers the power and versatility you need to ride farther, cruise longer, and stay in control.
Smaller Frame. Same Fire.

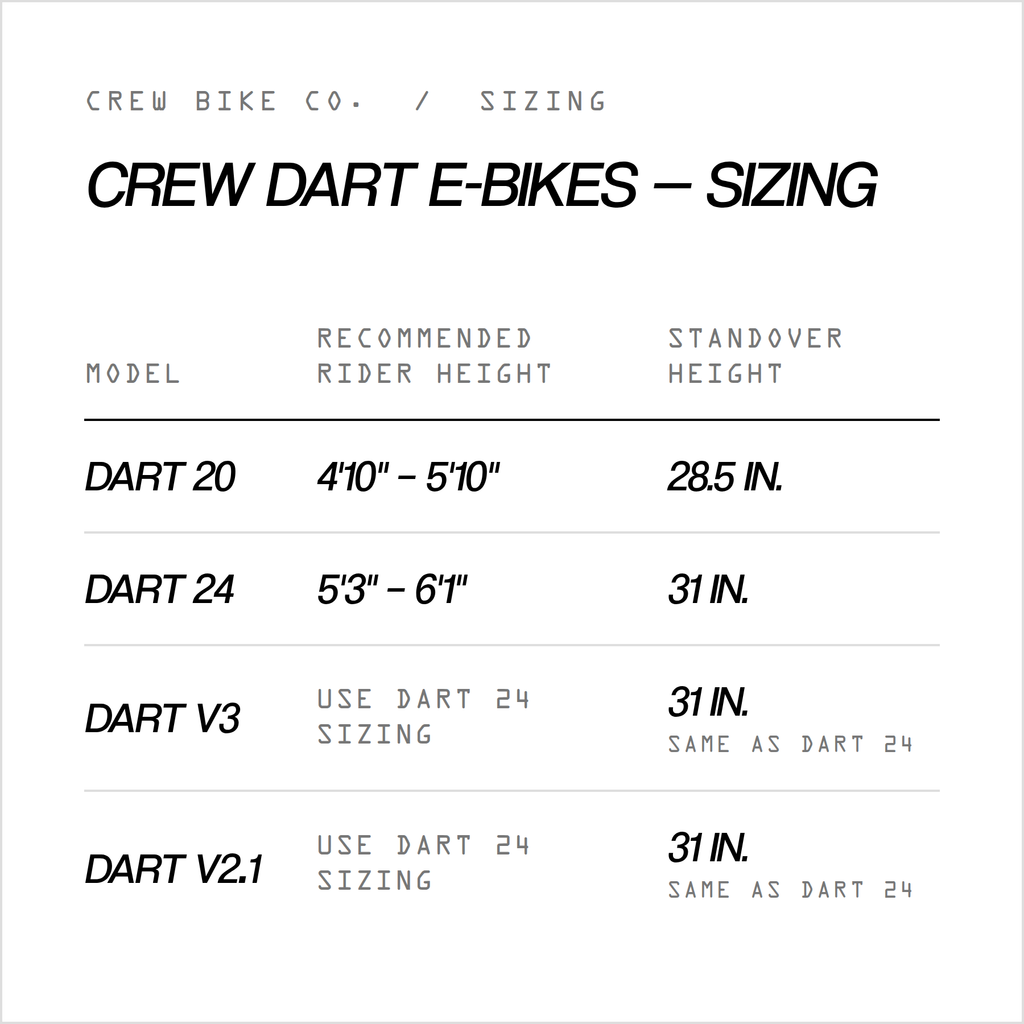

The 20" setup is perfect for riders who need a lower standover or just prefer a more agile feel. It's easier to throw around, easier to wheelie, and easier to handle in tighter spots — with all the electric muscle of the full-size Dart.
Refined Chromoly Frame
Tough chromoly steel, upgraded geometry, and a stable, responsive ride. The V3 frame takes what worked in the V2.1 and dials it in for better control and longer sessions.

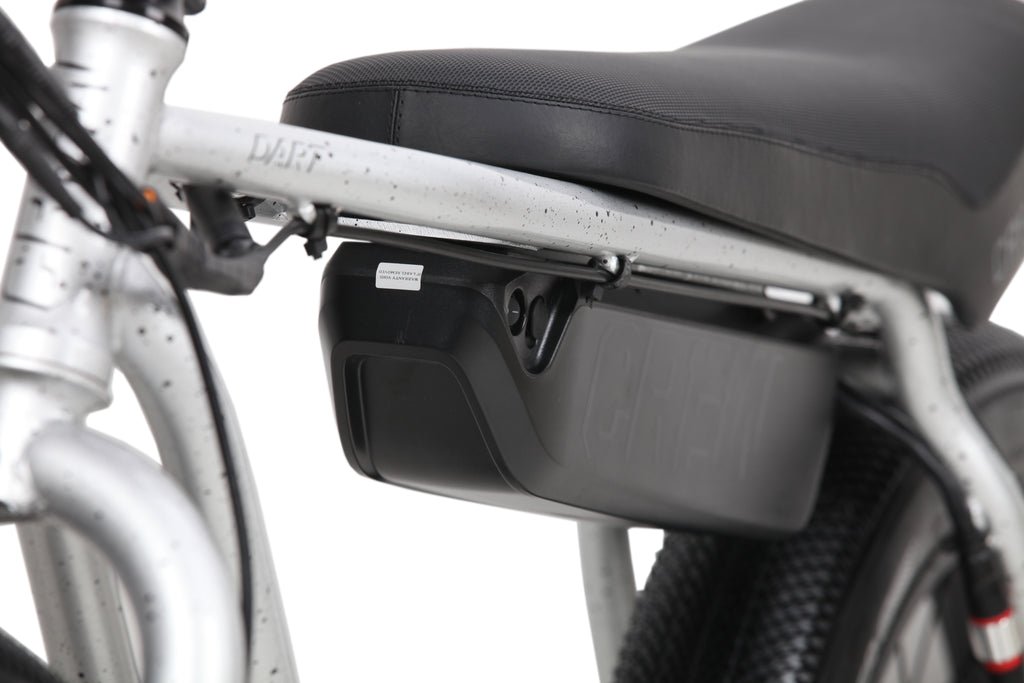

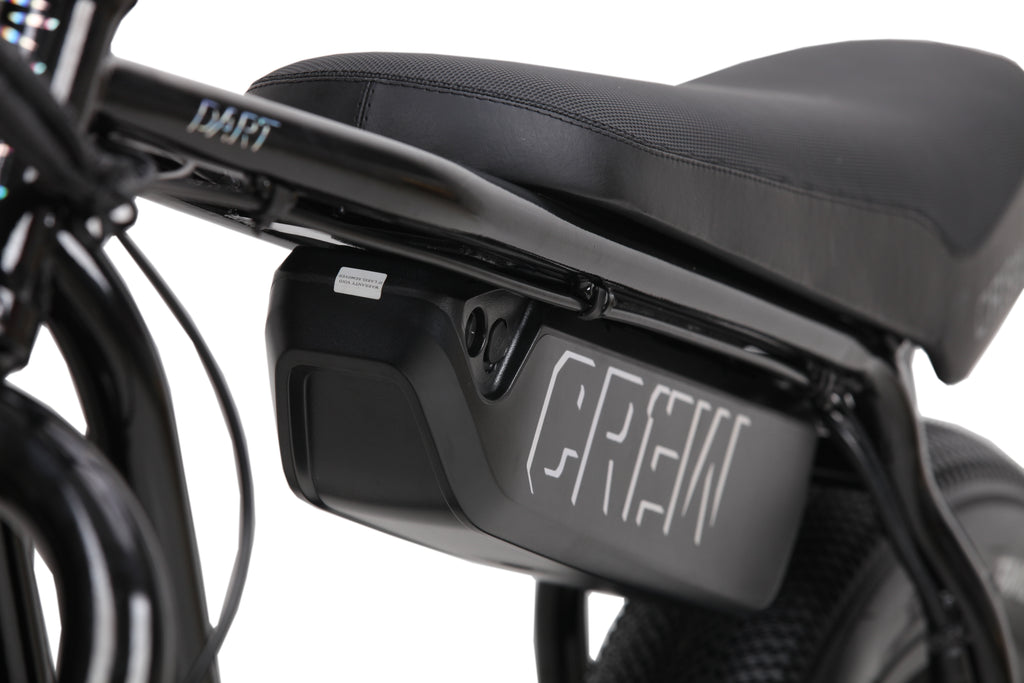

New Bench-Style Saddle
Comfortable. Clean. Built to move with you. The redesigned bench seat supports long rides and quick shifts, whether you're cruising or hitting a ride out. Grippier material and cradled design keeps you locked in while riding.

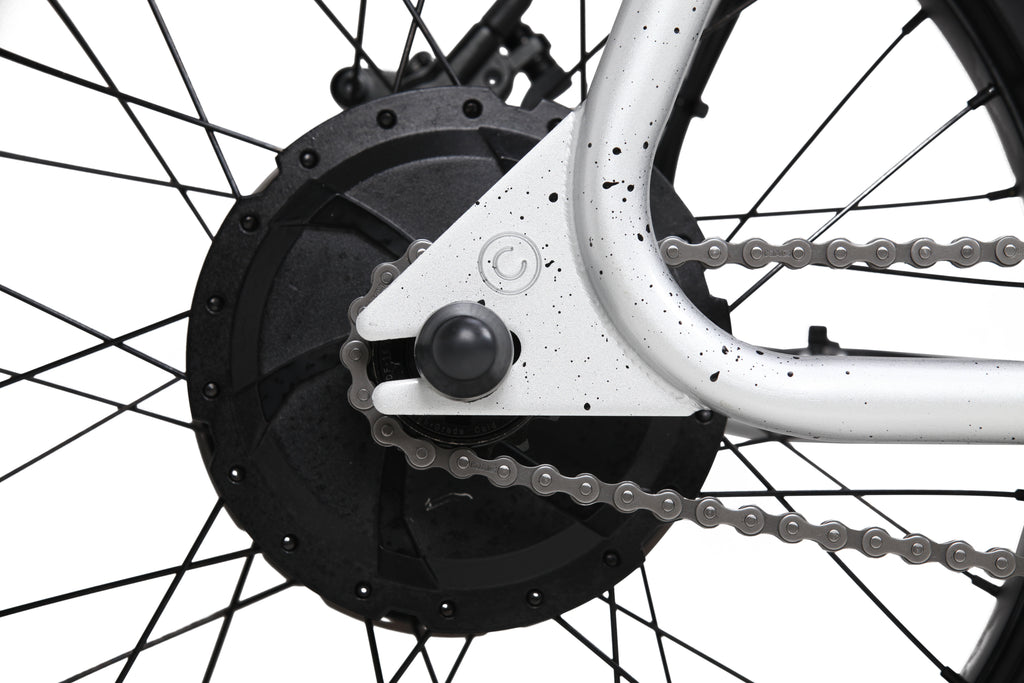

750w Motor, 48v Battery
You’re getting full power with a 750w rear hub motor and a 48v / 10Ah lithium-ion battery. Smooth, fast, and ready for anything the street throws your way.
Hydraulic Disc Brakes
Serious stopping power when you need it. Ride harder, stop sharper, stay in control.

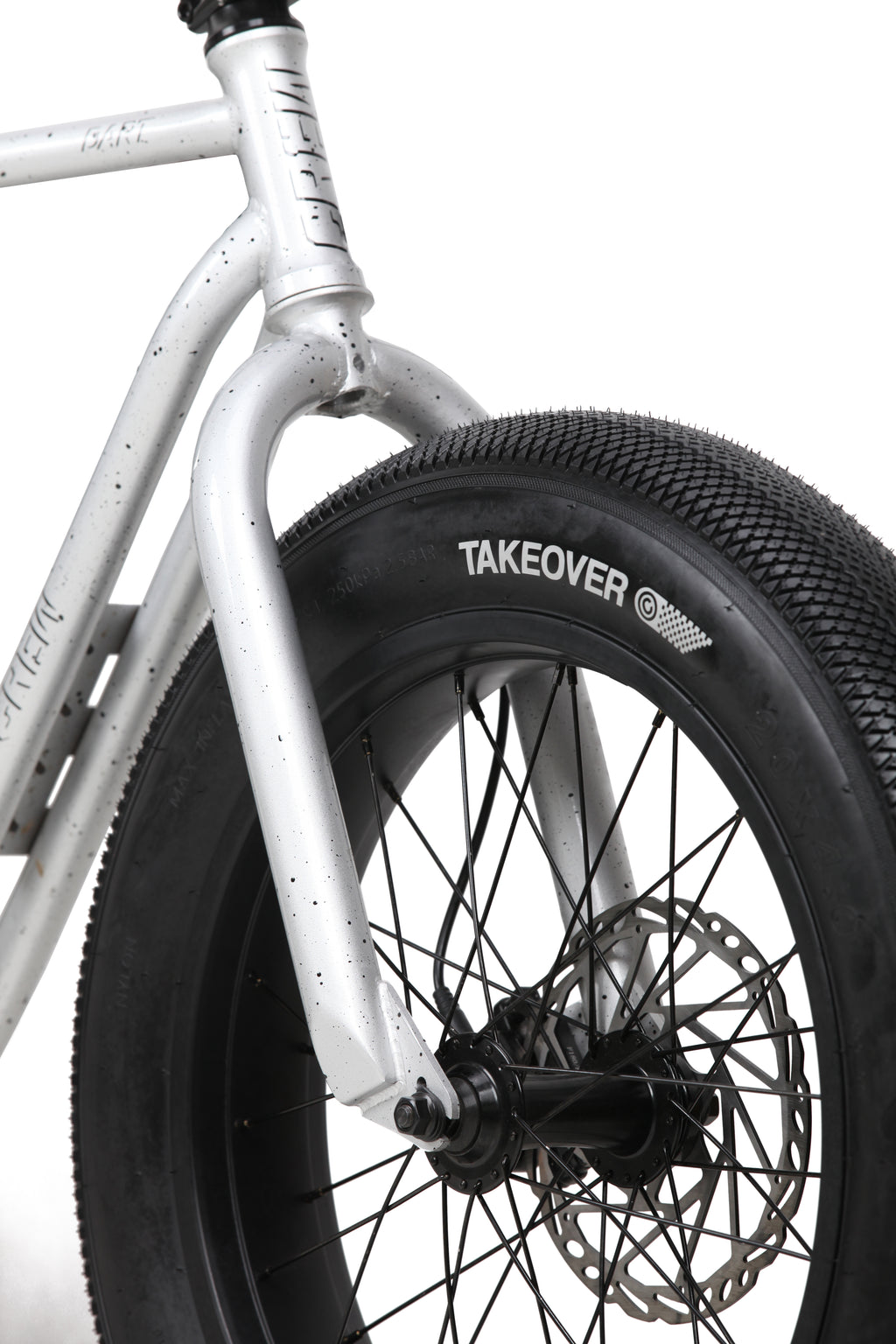

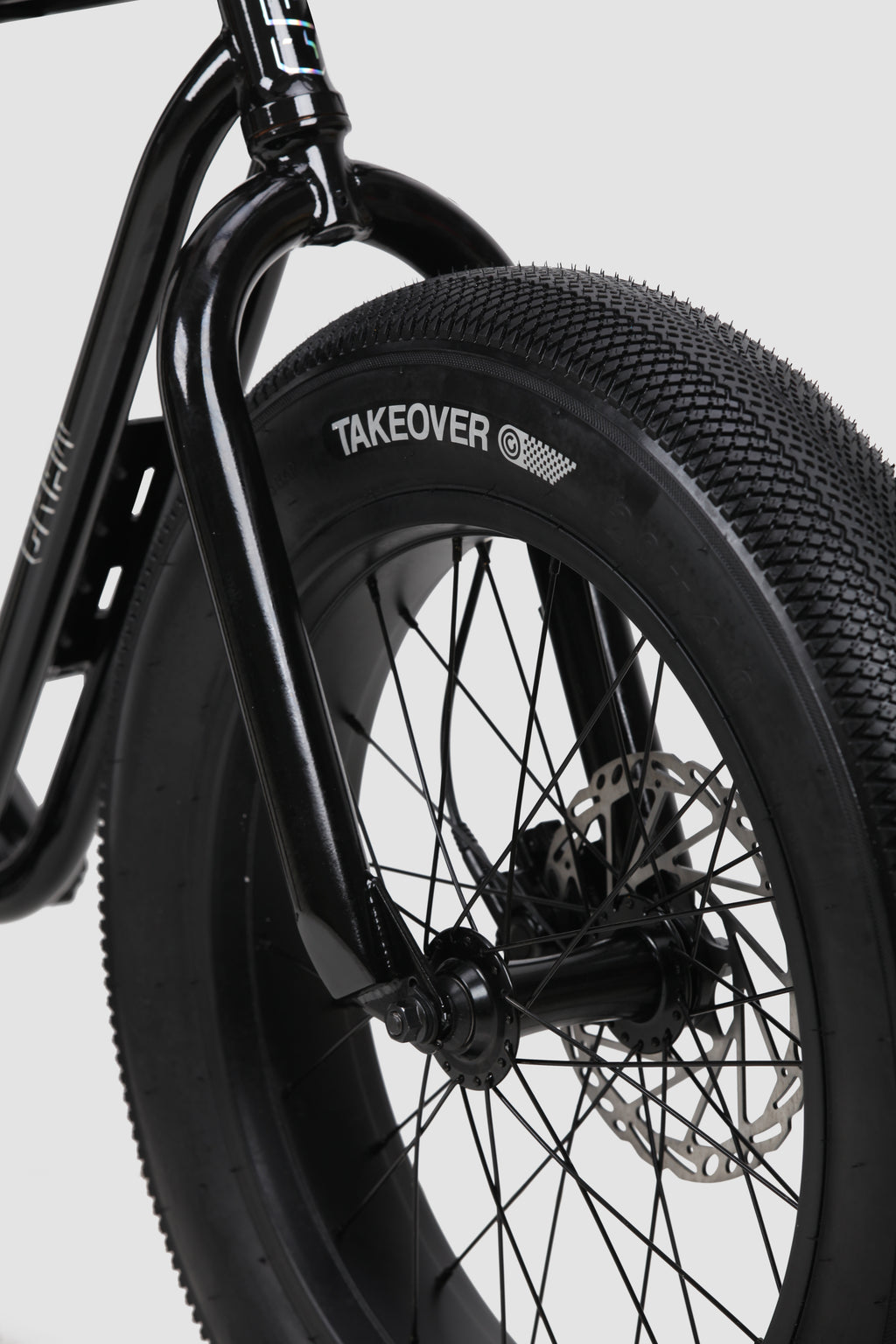

Fat Crew Takeover Tires
20" x 4.0" Crew Takeovers bring grip, shock absorption, and street-ready style. Ride rougher roads or cruise clean lines with the same confidence.
Specs:
- 750w rear hub motor
- 48v / 14Ah lithium-ion battery
- Hydraulic disc brakes
- New bench-style saddle
- Improved chromoly steel frame
- 20" x 4.0" Crew Takeover fat tires
The Dart V3 20" doesn’t hold back. It's built for control, power, and style — all in a more approachable size. Whether you're just getting started or locking in every ride out, this is the move.
| Frame: | Chromoly 20” Loop Tail |
|---|---|
| Fork: | Chromoly 20” |

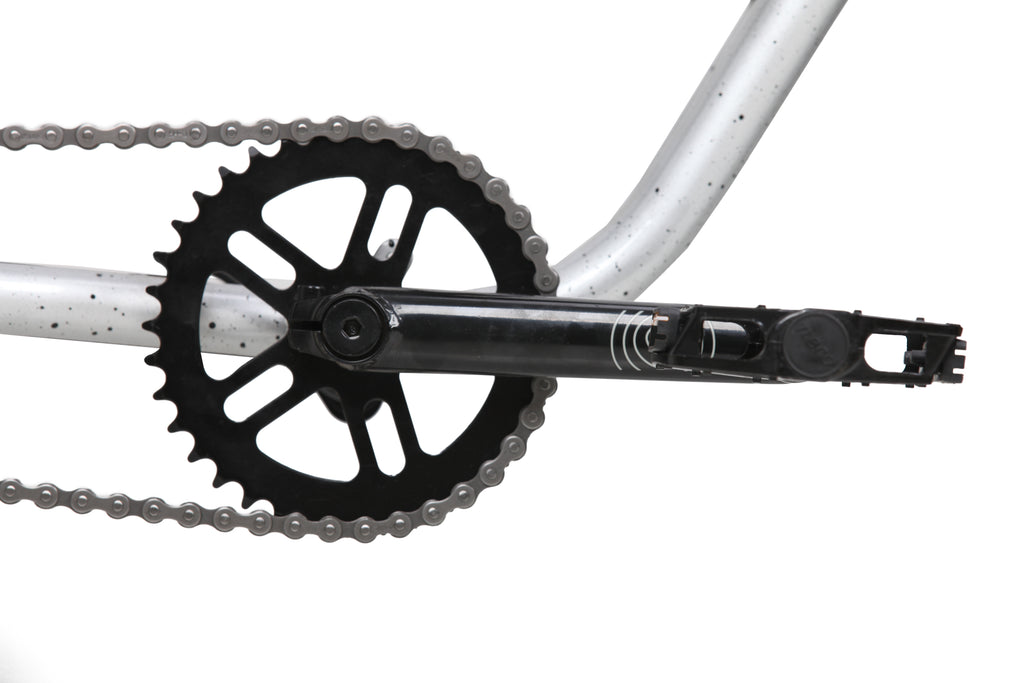

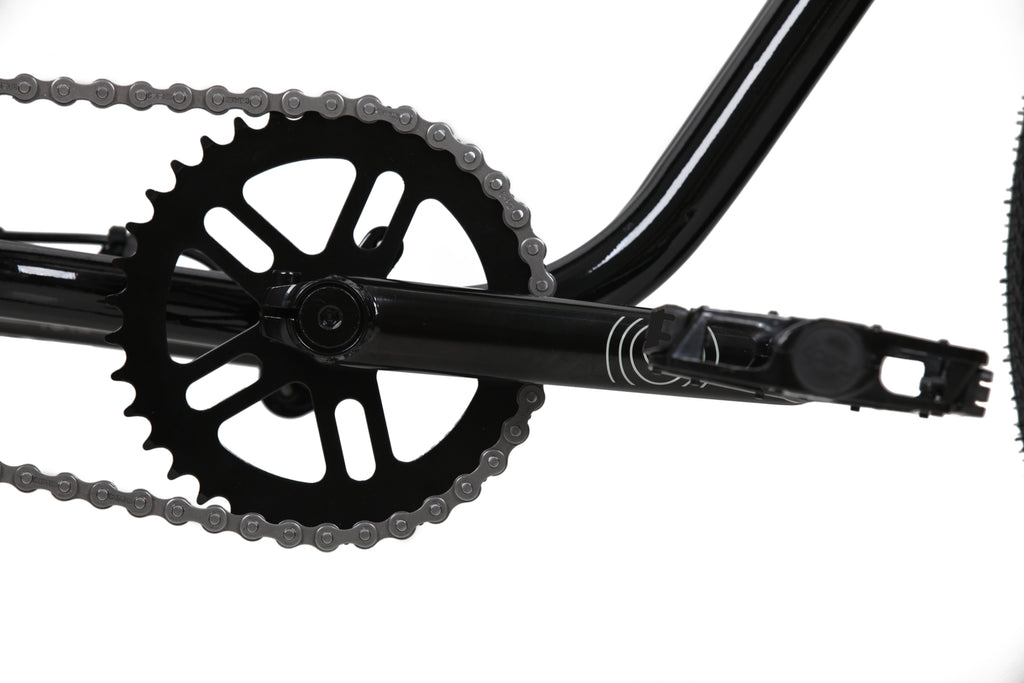

| Crank: | Crew Chromoly 155mm, 36t Chainring |
| Headset: | 1-1/8" Sealed Bearings |
| Wheelset: | 20" Double Wall Rim, Sealed Bearing Hub |
| Chain: | KMC 1/8" Heavy Duty |
| Freewheel: | Chromoly 16t |
| Seat: | Crew Bench Style Seat |
| Stem: | BMX 22.2mm Clamp, 50mm |
| Handlebars: | Crew MK2-Narrow 2-PC Chromoly, 6.8” Rise, 680mm width, 22.2mm clamp |
| Brakes: | Hydraulic Disc Brakes, F: 180mm Rotor / R: 160mm Rotor |
| Tires: | Crew Takeover 20” × 4.0” Fat Tire |
|---|---|
| Battery: | 48V 10Ah Lithium-ion |
| Motor: | 750W Hub Motor |
| Display: | 48V LCD Display |
| Throttle Style: | Thumb Throttle |
| Controller: | 48V 750W, 3 Modes – Eco, Sport, Race |
| Sensor: | Pedal Cadence Sensor |
| Range: | Up to 20 miles (throttle). 25–35 miles depending on PAS mode and terrain |
| Speed: | 20 MPH |
| Charger: | 48V 2A Charger |
| Lights: | Rear LED Taillight |
| Weight: | 61 lbs |
All bikes purchased through Crew Bike Co. MUST be assembled
by a certified bike shop mechanic. If the bike is NOT built by a certified bike
shop mechanic, any warranty will be VOID. We will request for an assembly
receipt as proof of professional installation.
For all warranty claims, please contact our
Warranty Team at support@crewbikeco.com.
So that we can help you in a timely manner, make sure to include the following:
1.Order Number (we will confirm date of purchase and determine if the item
is still under the manufacturer’s warranty time limit)
2.Brief description of the claim
3.Photographs
4. If the item is a bike or frame, include the serial number
We evaluate all warranties case-by-case to determine the
best course of action and get you serviced to the best of our ability!
Warranty does not apply to the following:
• Any part of a product that has
been installed, altered, repaired, or misused
• Damage from unintended style of
riding, abuse, neglect, accident, and racing
• Normal wear and tear of any
product (including but not limited to - saddles, grips, tires, tubes, cables,
brake pads, chains)
• Failure to provide regular
maintenance of any product
Labor and shipping are the responsibility of the
customer. We do not cover parts purchased and labor performed by another bike
shop.
Note: Warranty is for original owner only.
