Dart20-S

$ 1,549.00

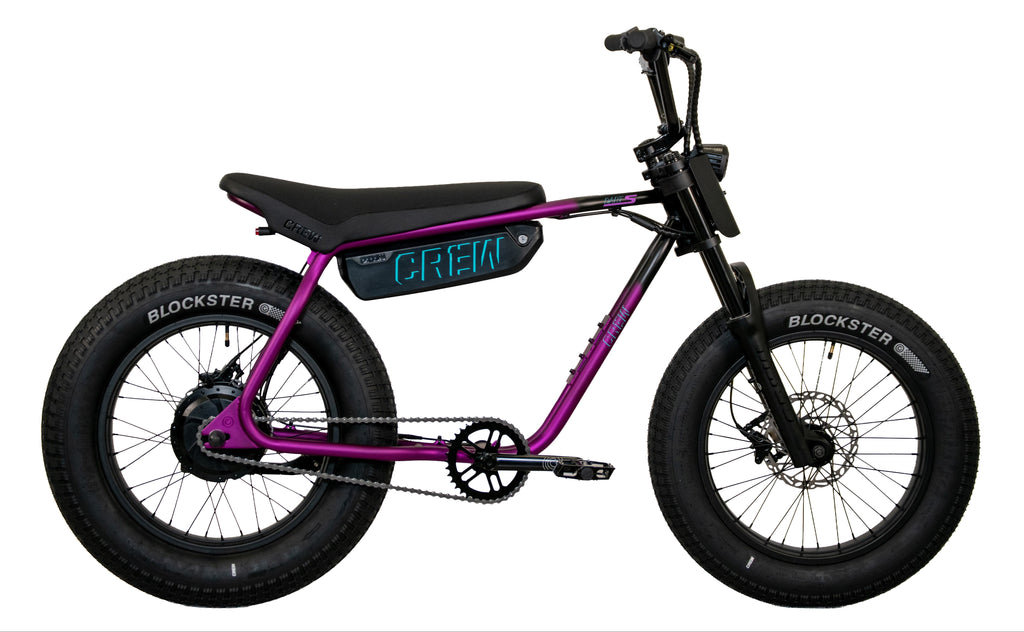

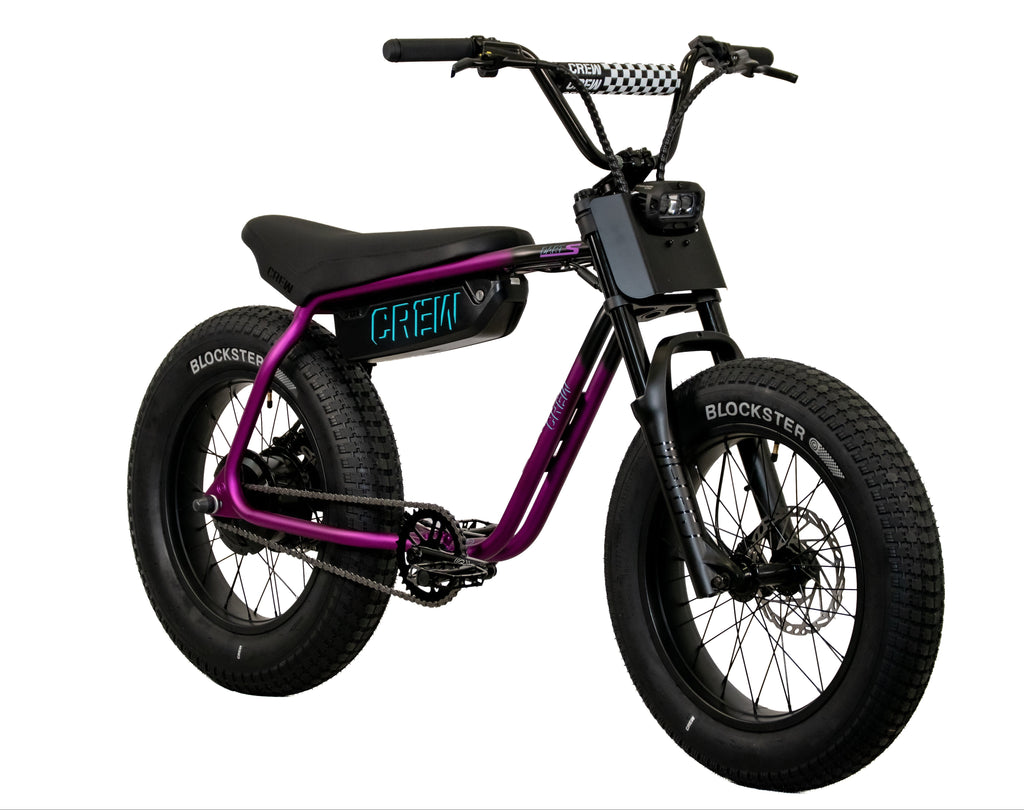

Purple Fade
1/17

Dart20-S

$ 1,549.00
Color
Compatible Accessories
DESCRIPTION

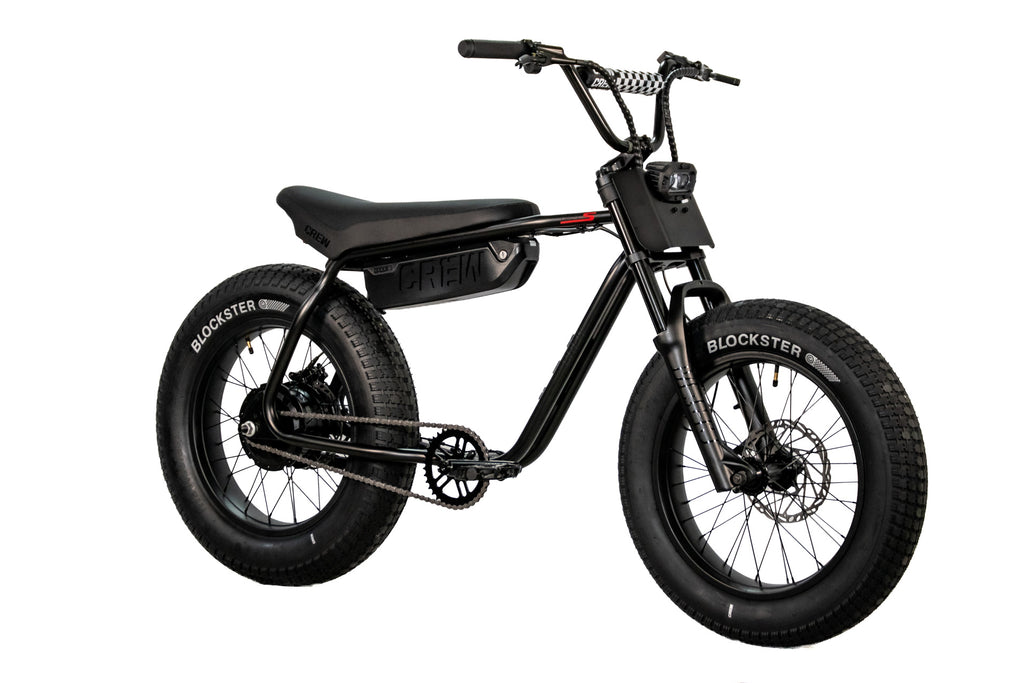

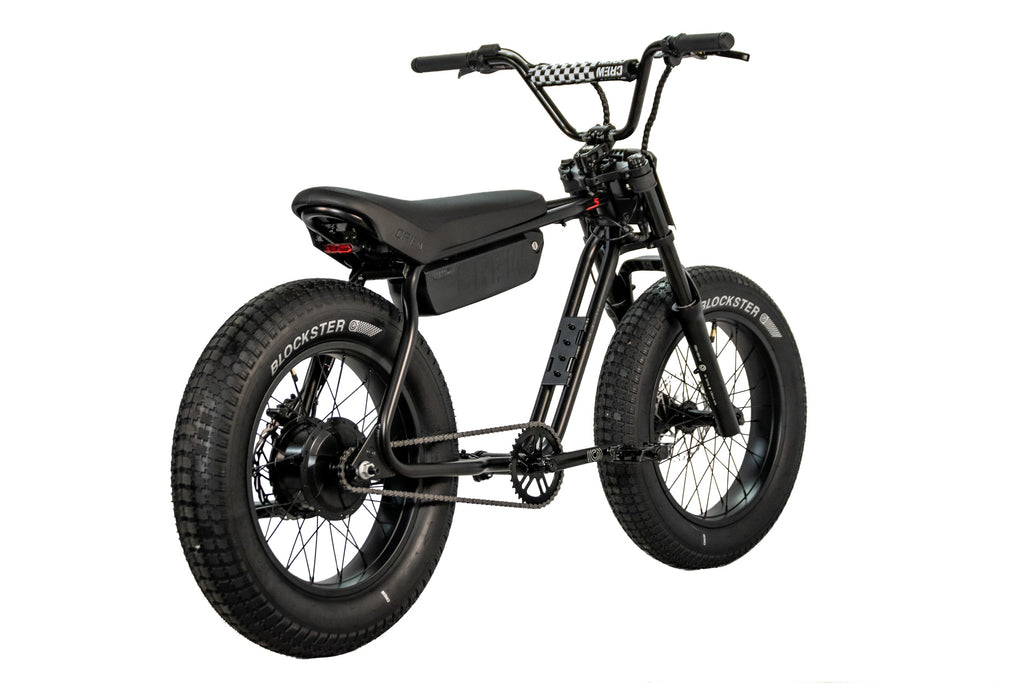

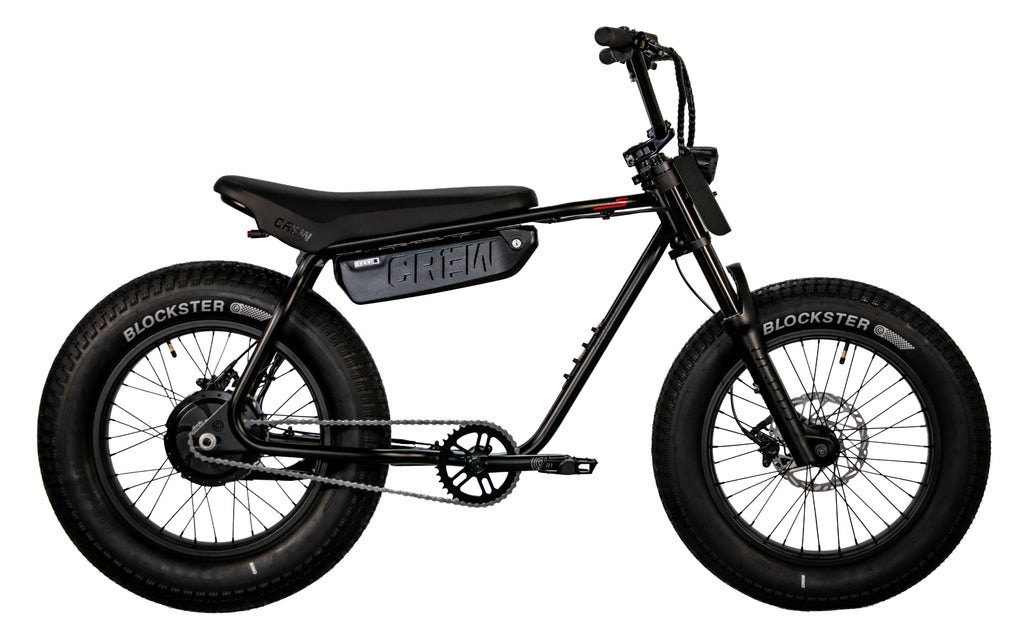

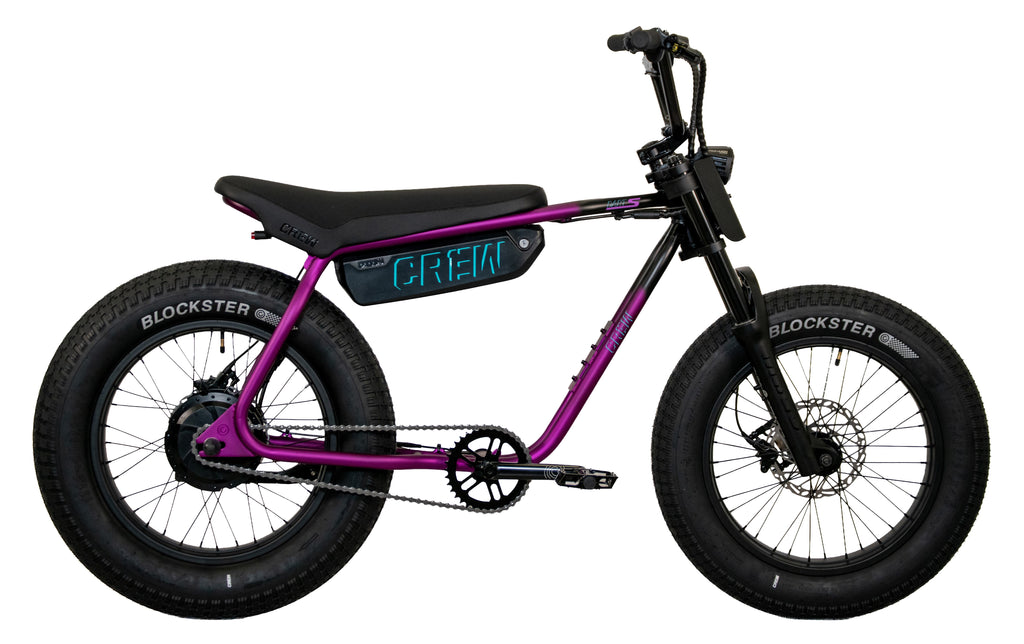

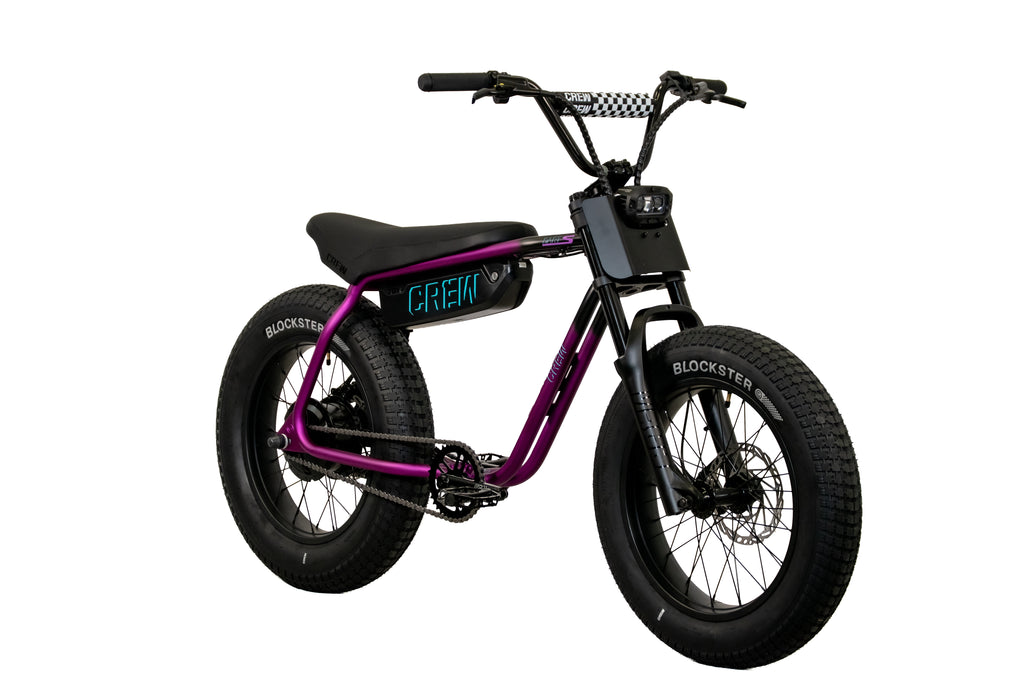

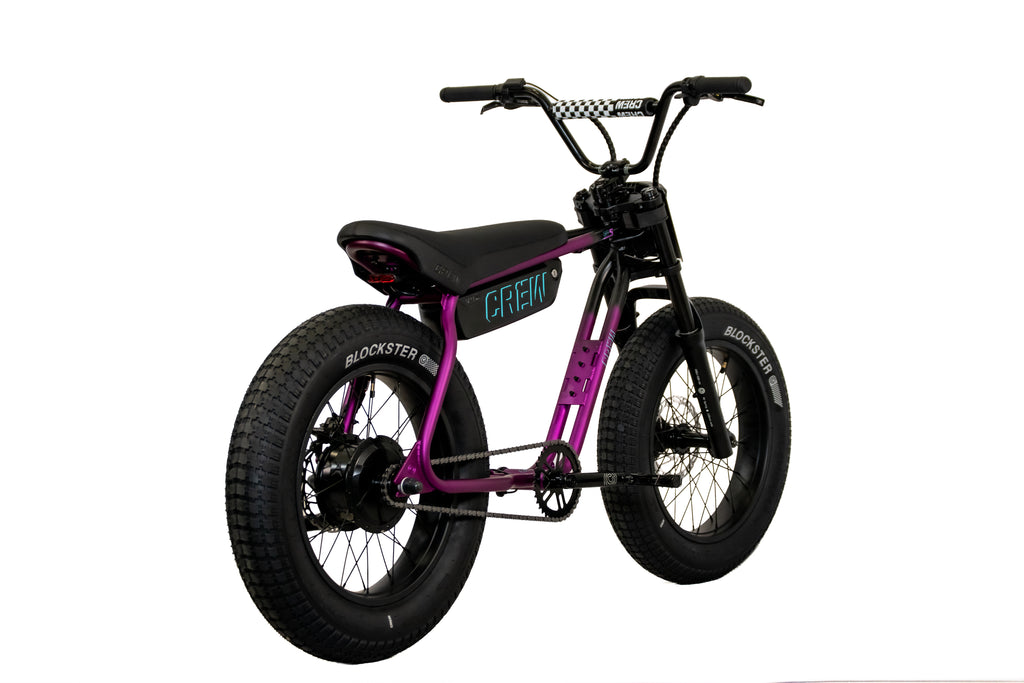

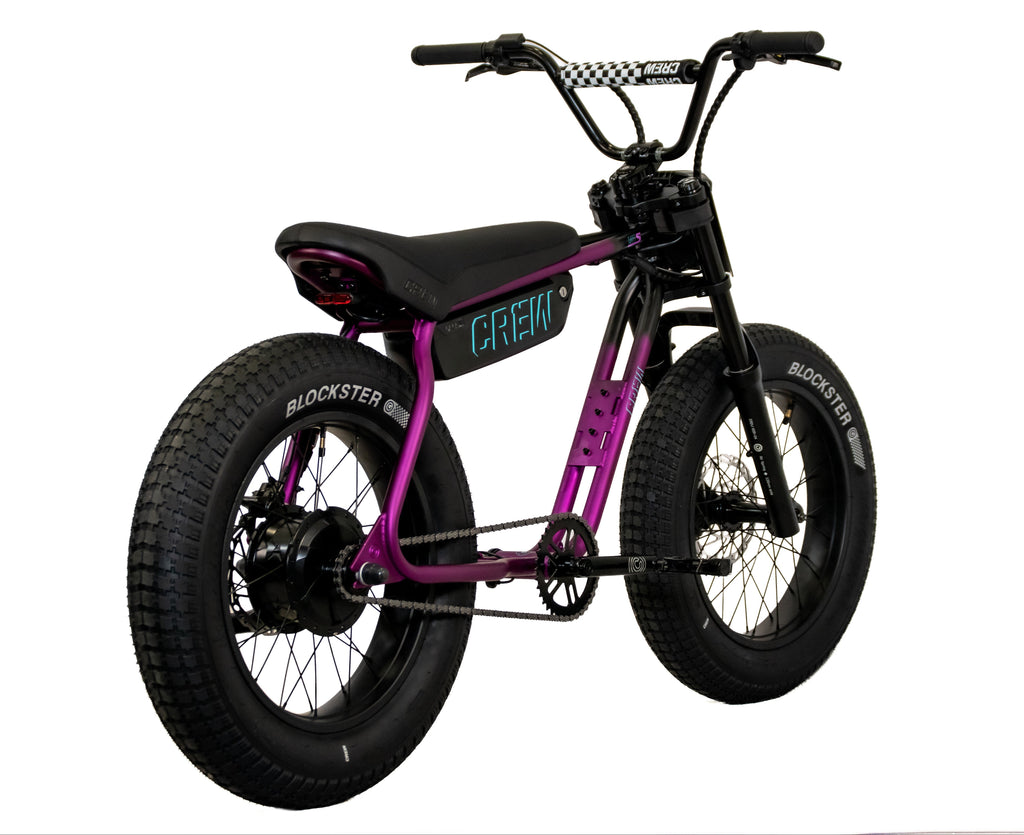

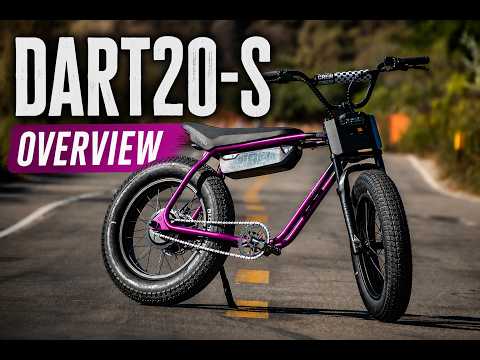

Crew Dart20-S

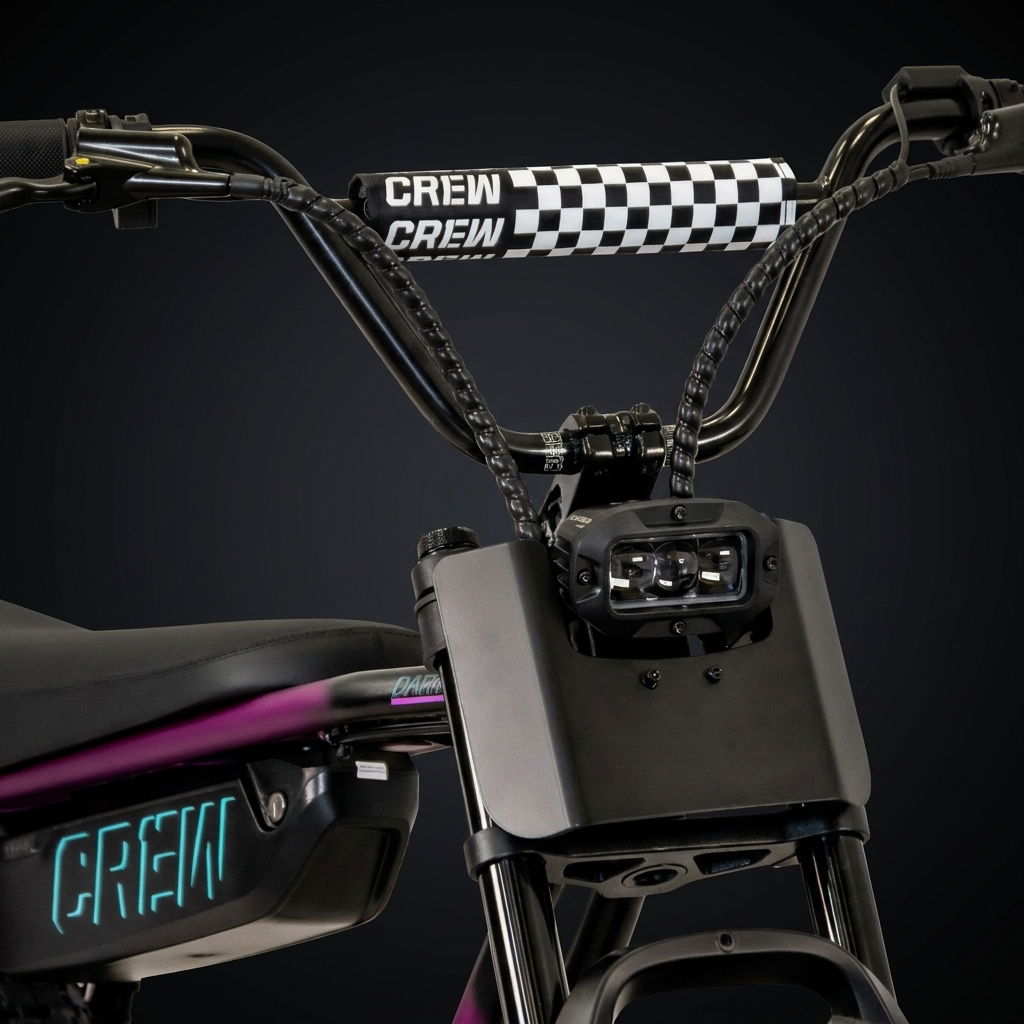

The Crew Dart20-S takes the compact, bike-life-ready Dart20 platform and levels it up with more capability, comfort, and range. An 80mm travel suspension fork smooths out rough streets and adds control when the riding gets technical, while the integrated front plate gives the bike an aggressive, moto-inspired look.

A punchy 750W rear hub motor is paired with an upgraded 48V / 14Ah battery for longer rides and extended sessions. Hydraulic disc brakes provide confident stopping power, while fat 20" x 4.0" Crew Takeover Tires deliver plenty of grip and cushion. Finished with a powerful 48V headlight, the Dart20-S is built for cruising, wheelies, ride-outs, and everything in between.

Recommended for riders 4'10"–5'10".

TECHNICAL DATA

Frame:Chromoly 20” Loop Tail

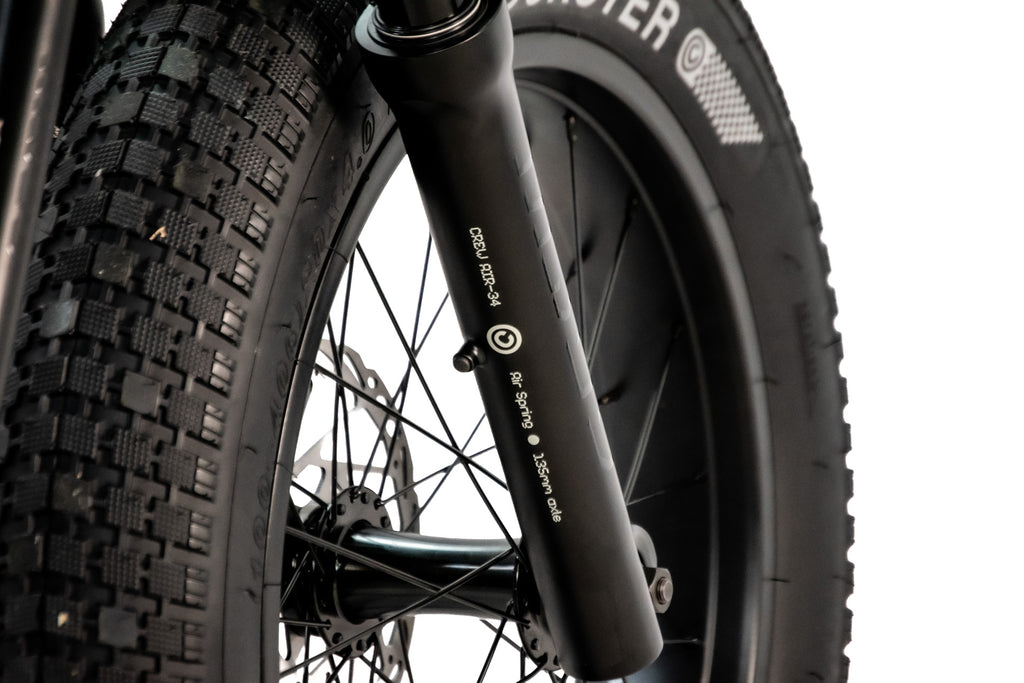

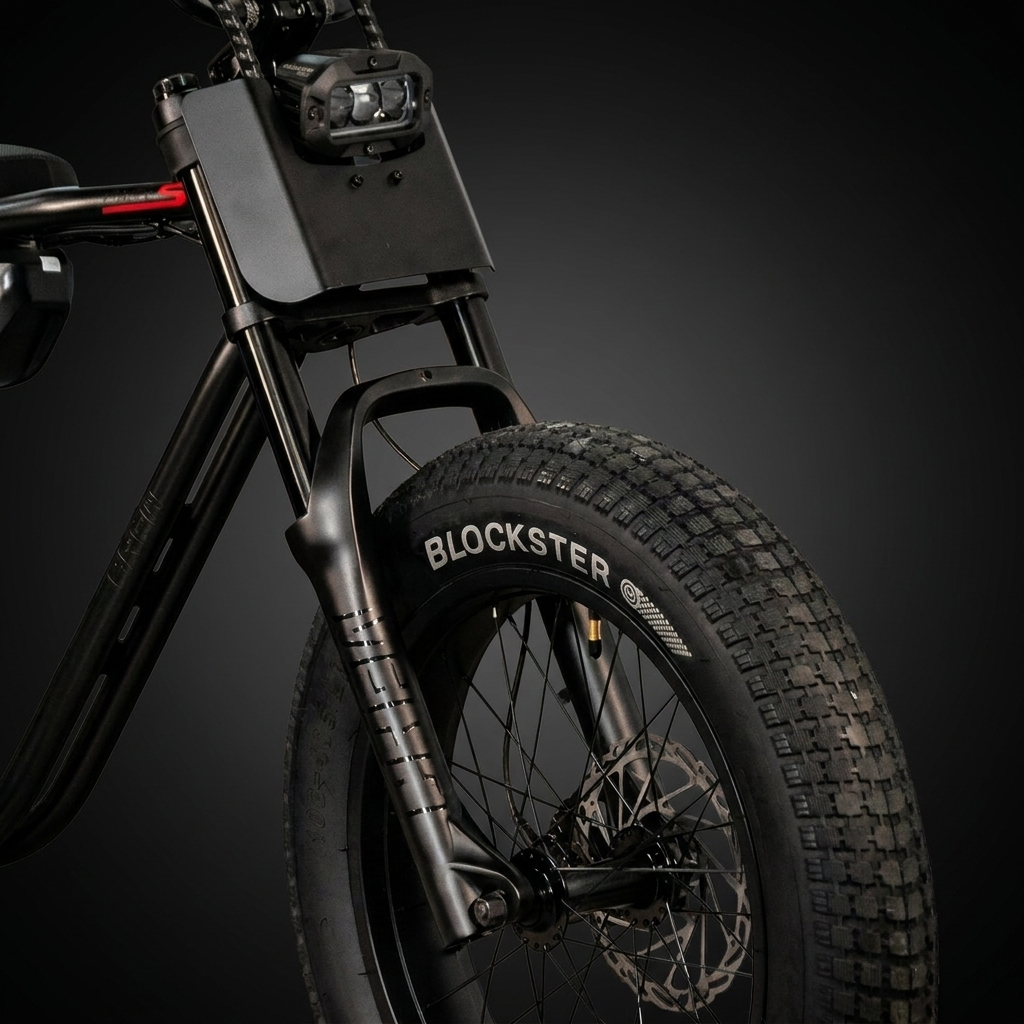

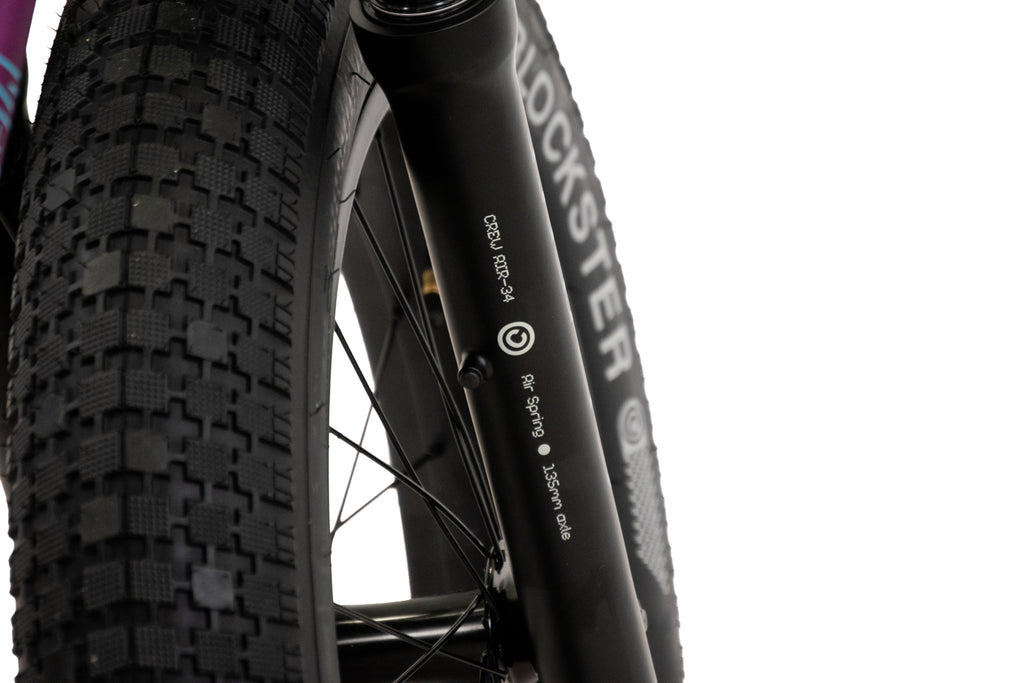

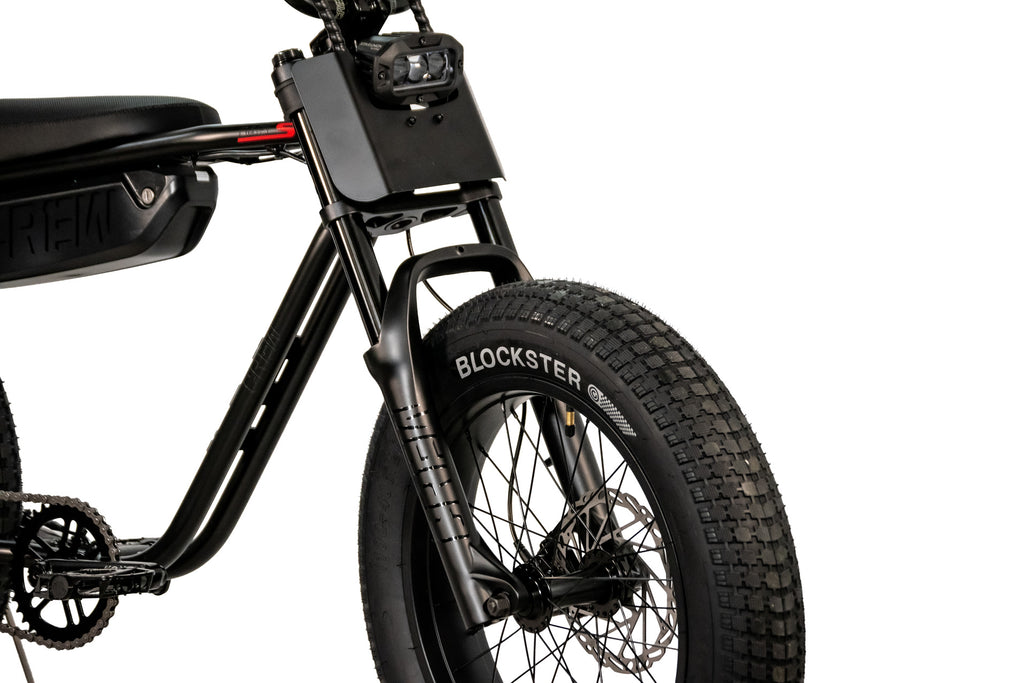

Fork:Front Suspension Fork, 80mm Travel

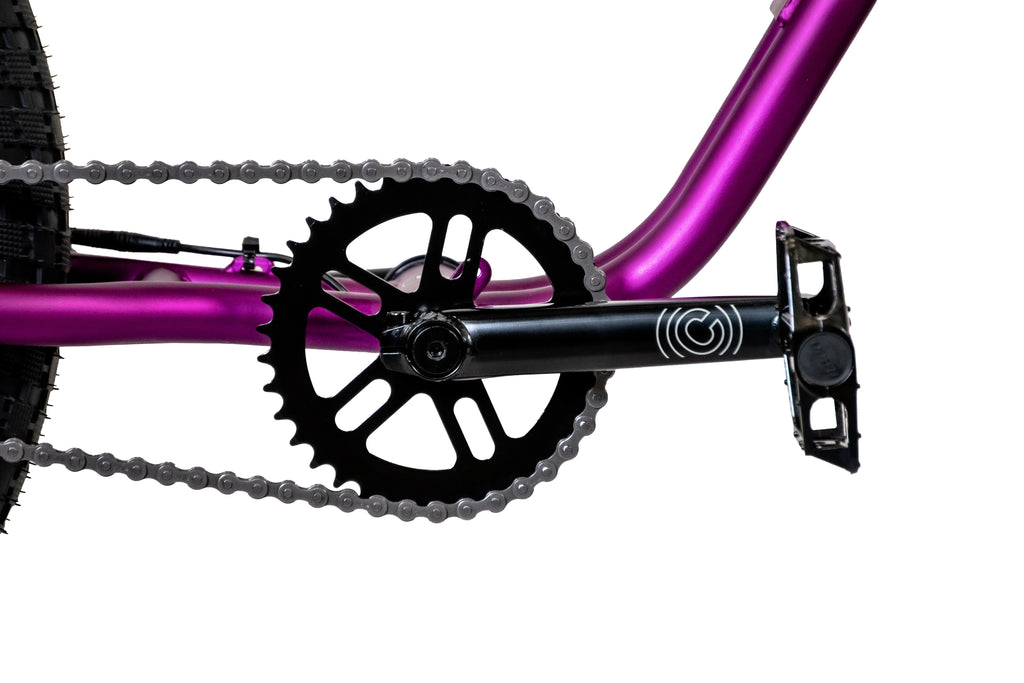

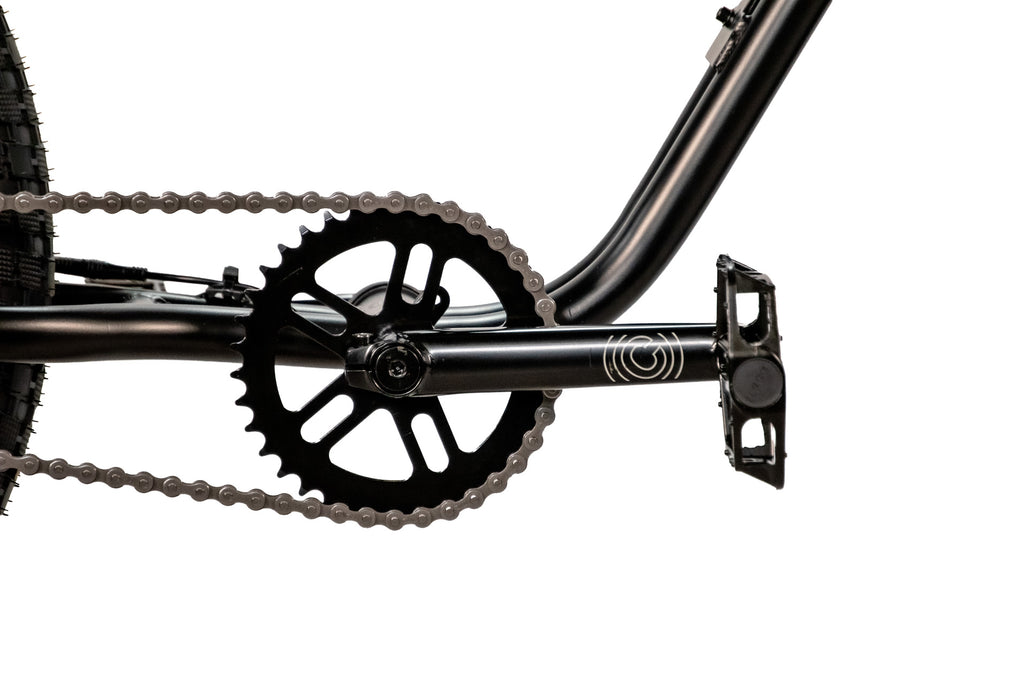

Crank:Crew Chromoly 155mm, 36t Chainring
Headset:1-1/8" Sealed Bearings
Wheelset:20" Double Wall Rim, Sealed Bearing Hub
Chain:KMC 1/8" Heavy Duty
Freewheel:Chromoly 16t

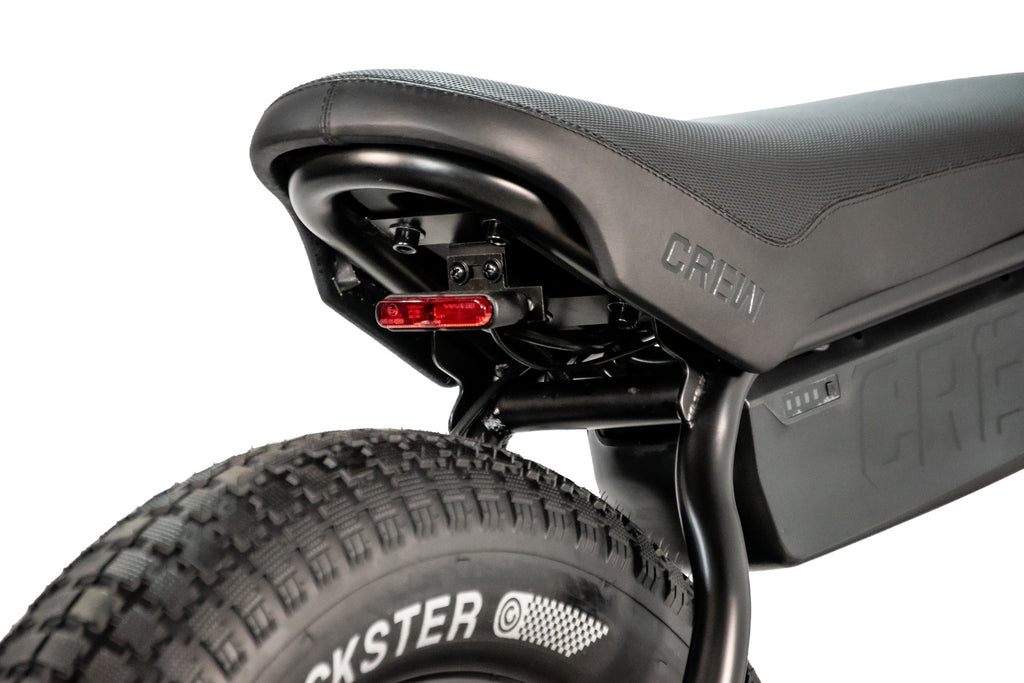

Seat:Crew Bench Style Seat
Stem:BMX 22.2mm Clamp, 50mm

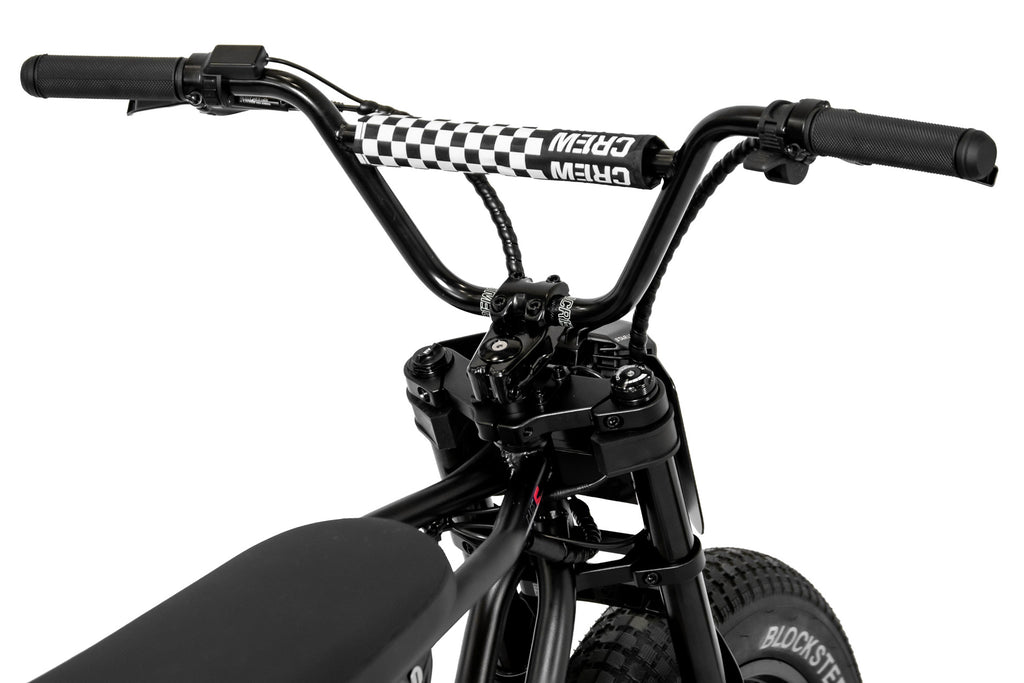

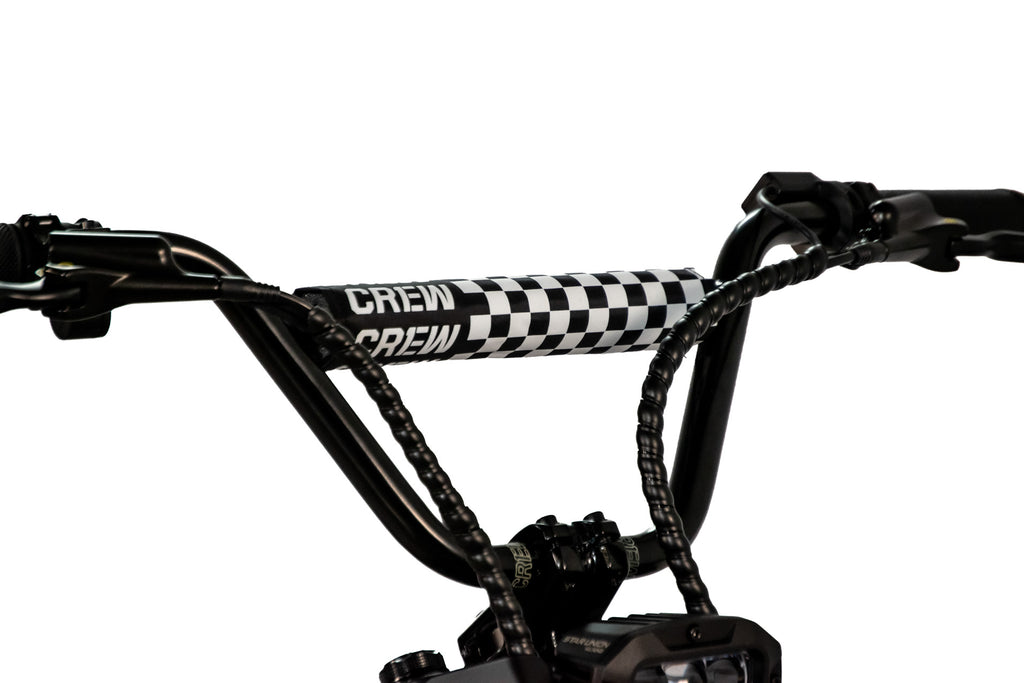

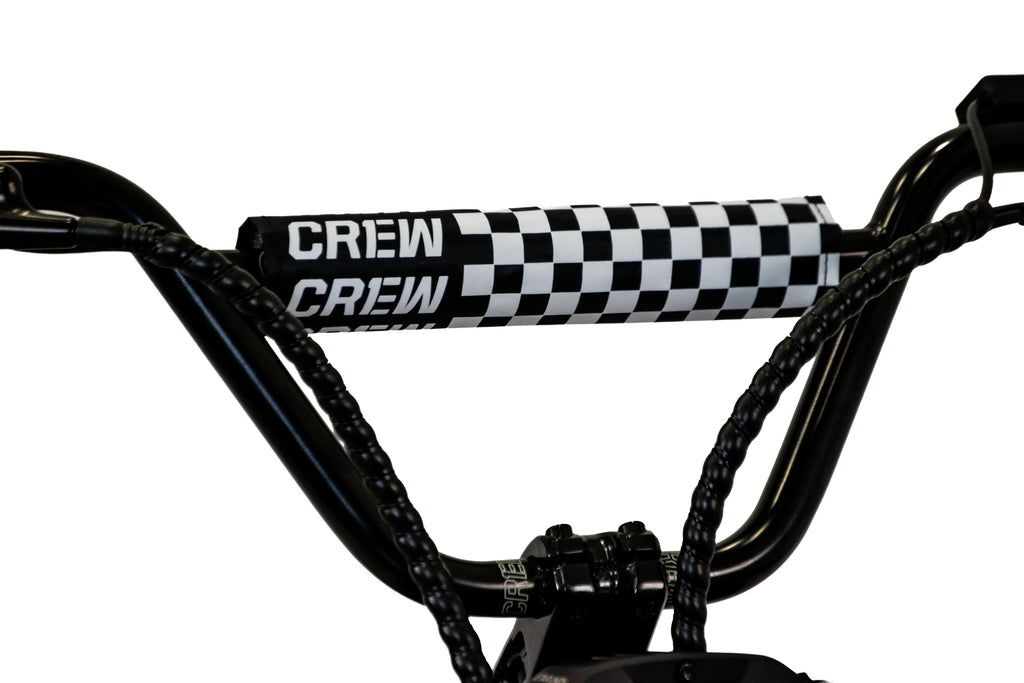

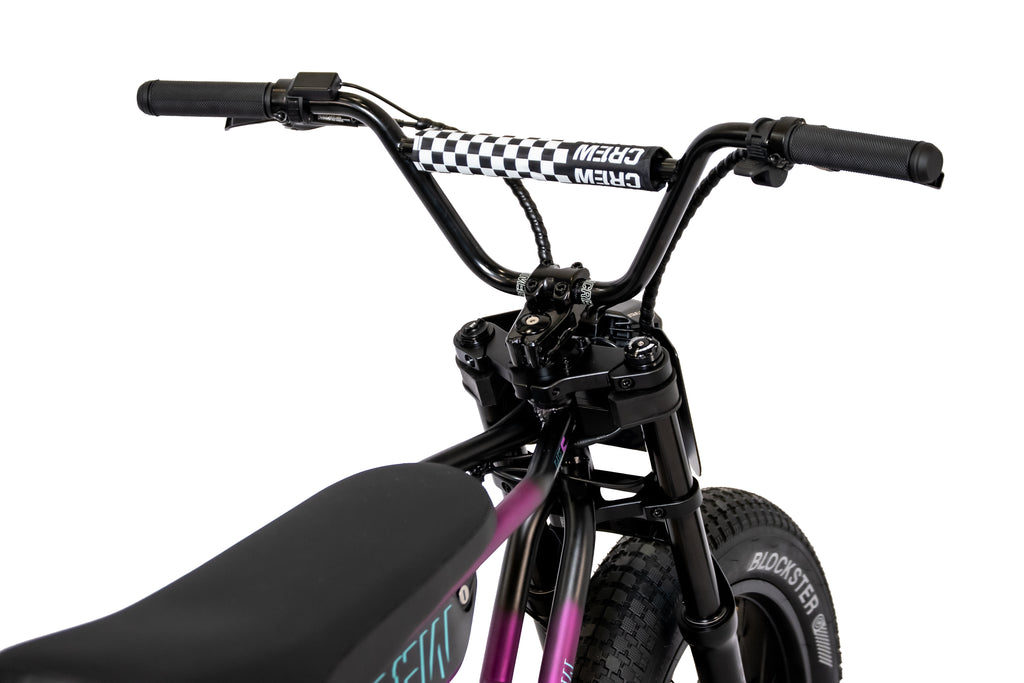

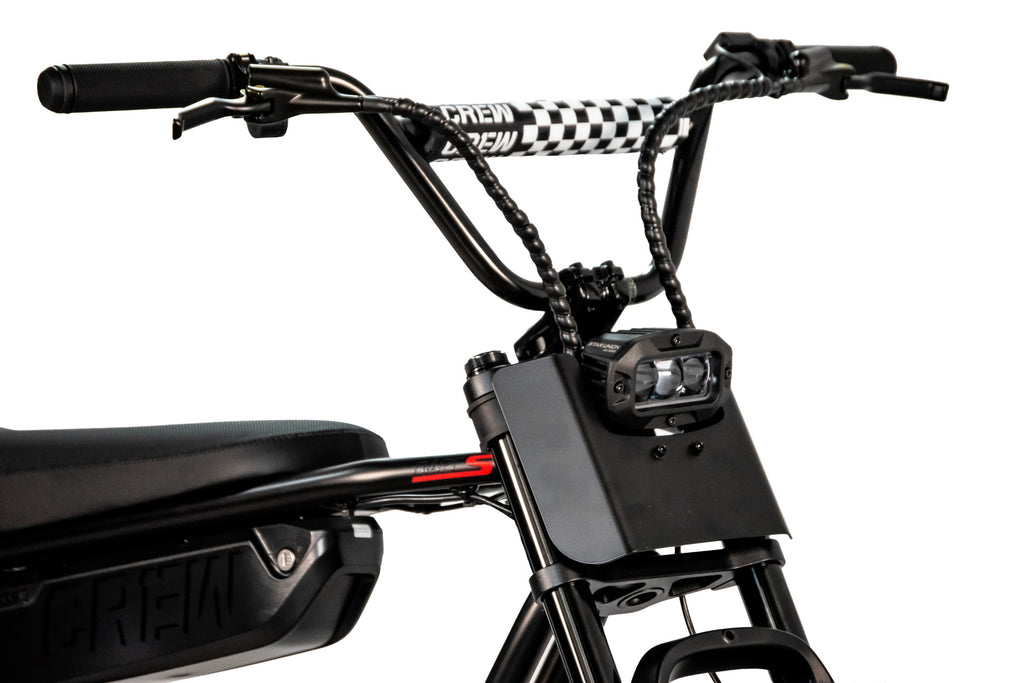

Handlebars:Crew MK2-Narrow 2-PC Chromoly, 6.8” Rise, 680mm Width, 22.2mm Clamp
Brakes:Hydraulic Disc Brakes, F: 180mm Rotor / R: 160mm Rotor

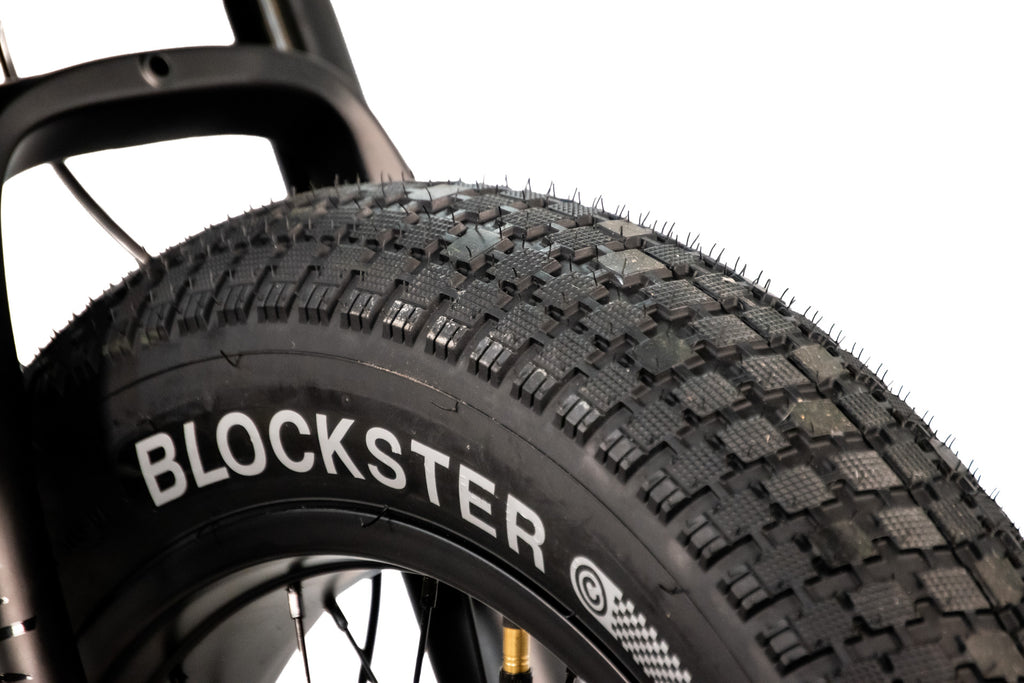

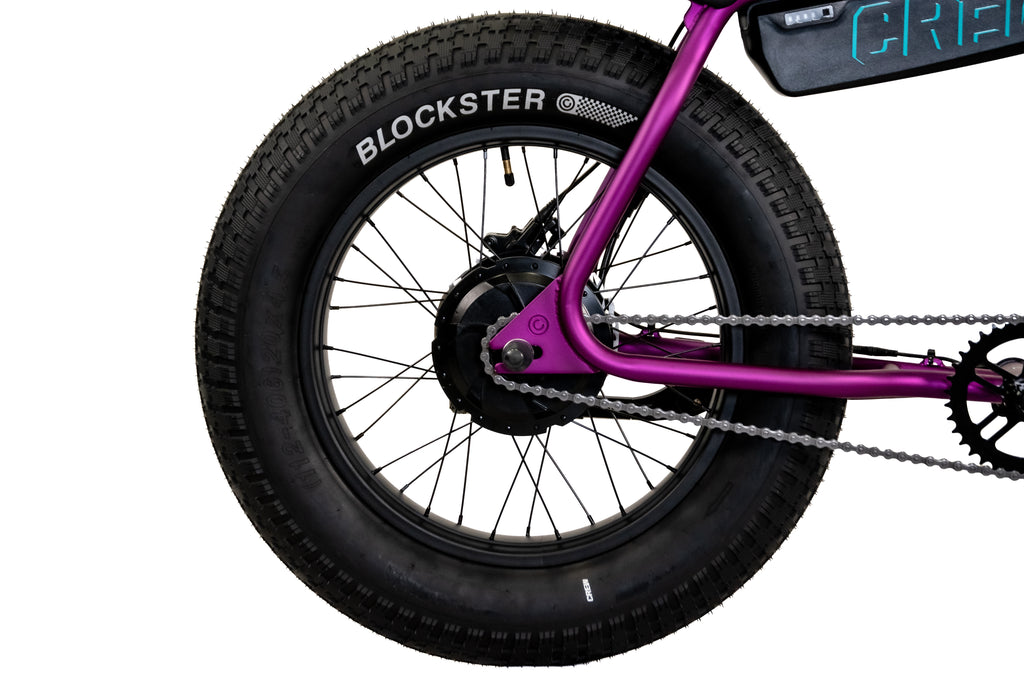

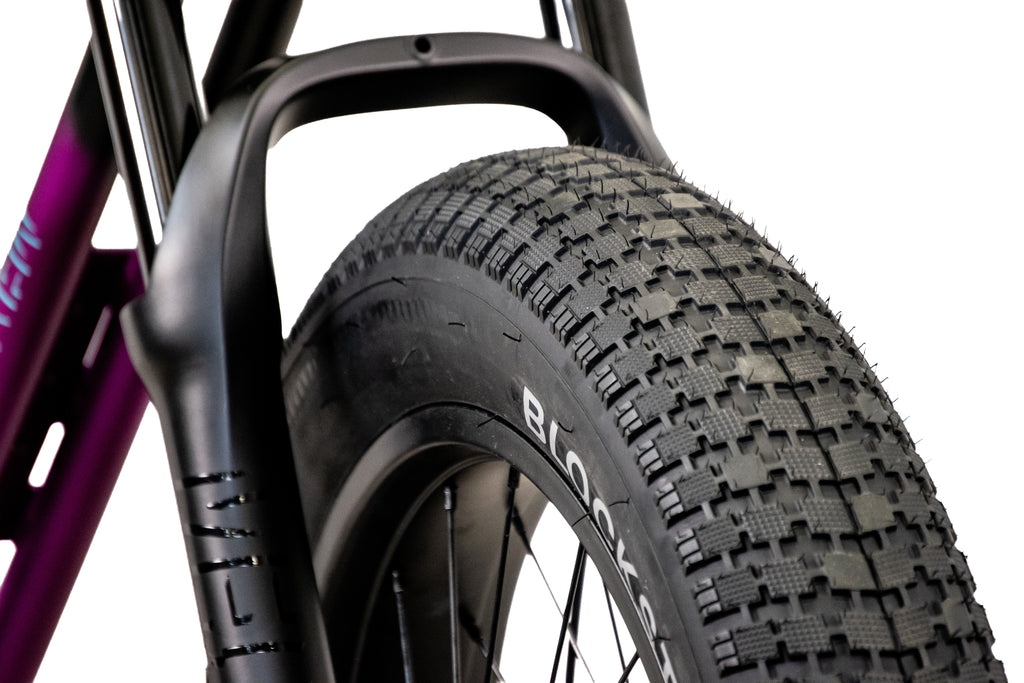

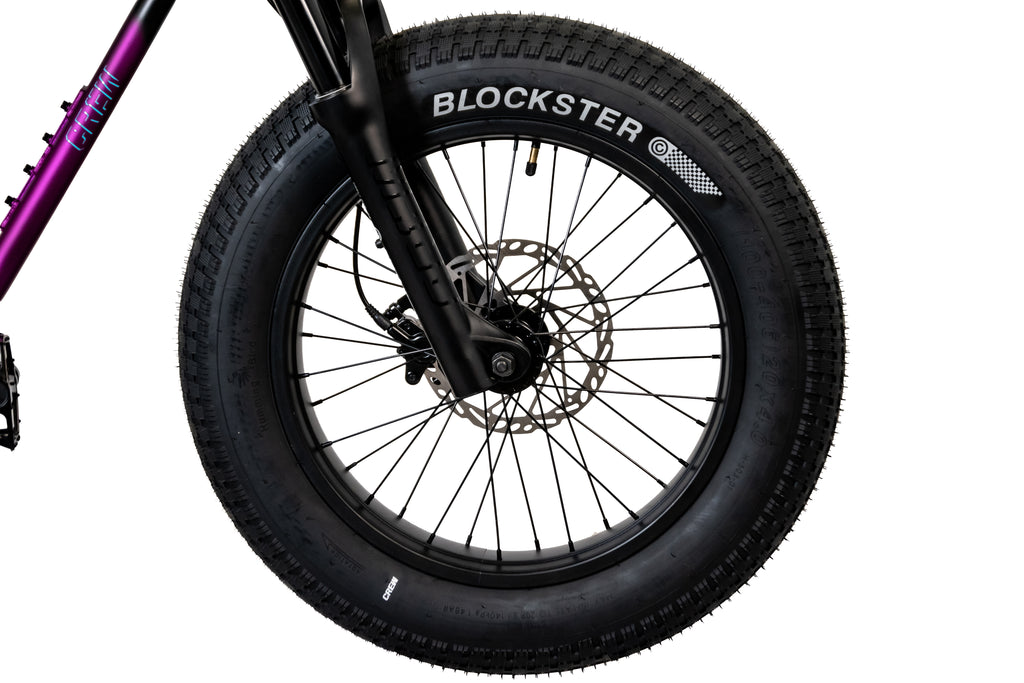

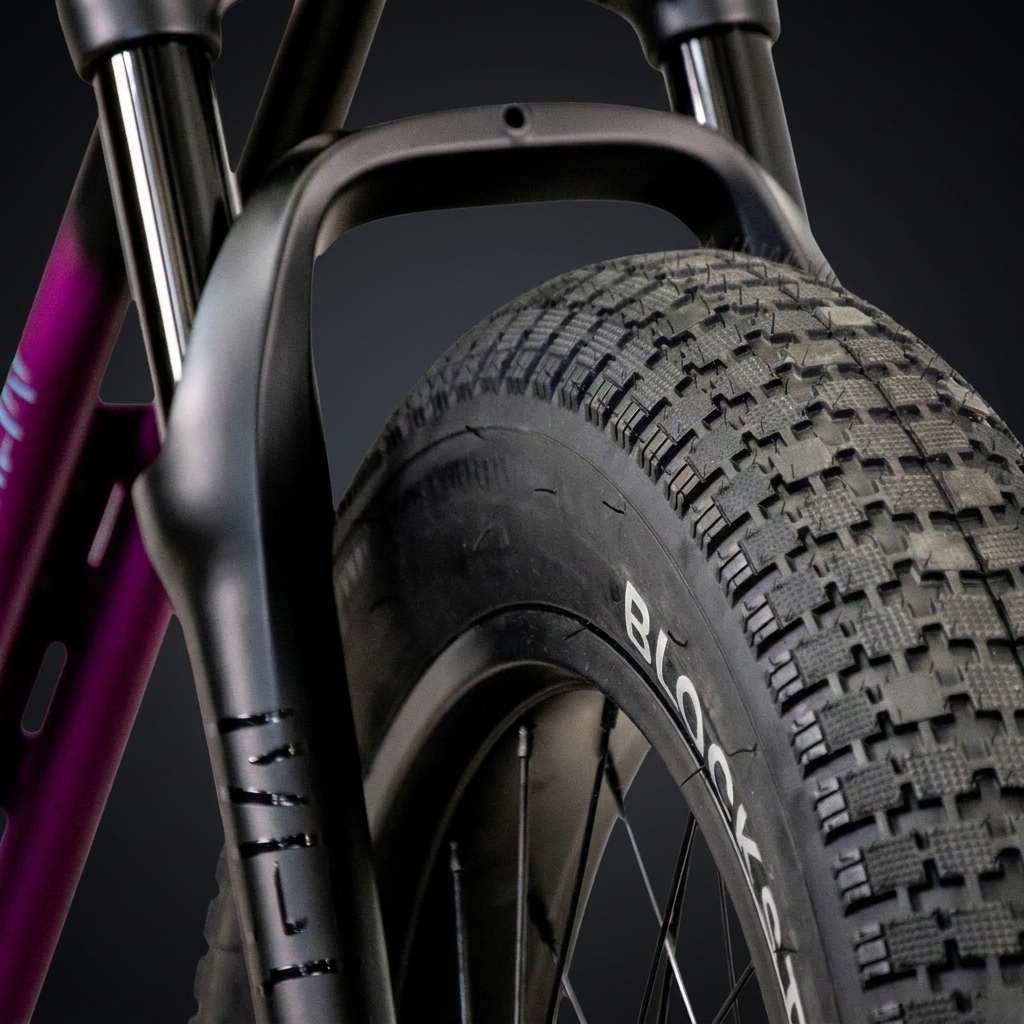

Tires:Front: Crew Blockster 20” × 4.0” / Rear: Crew Blockster 20" × 4.5"

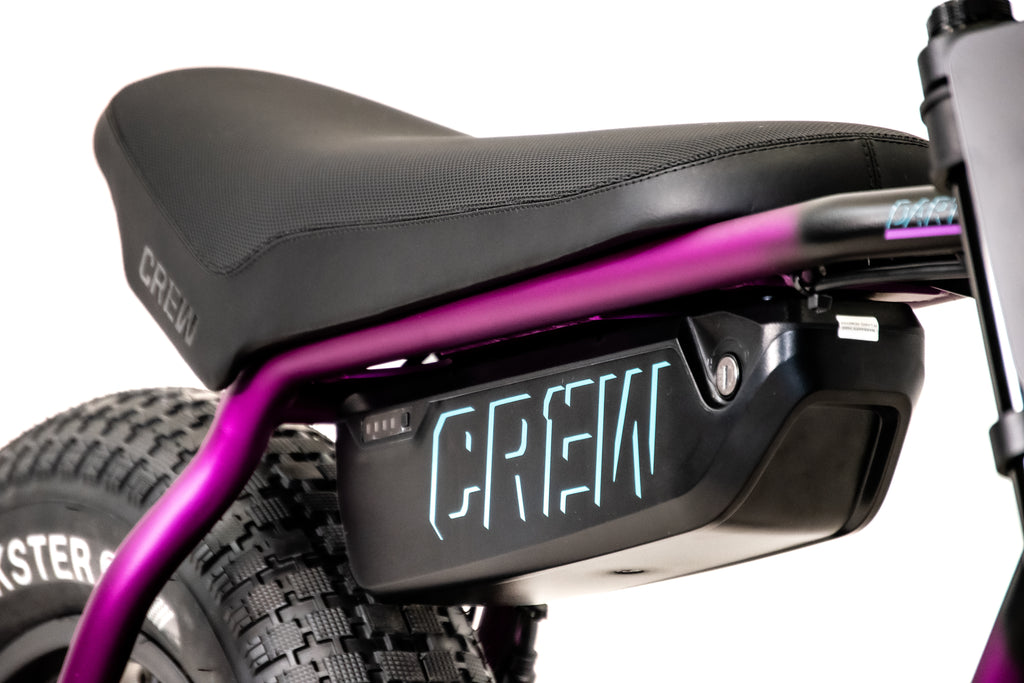

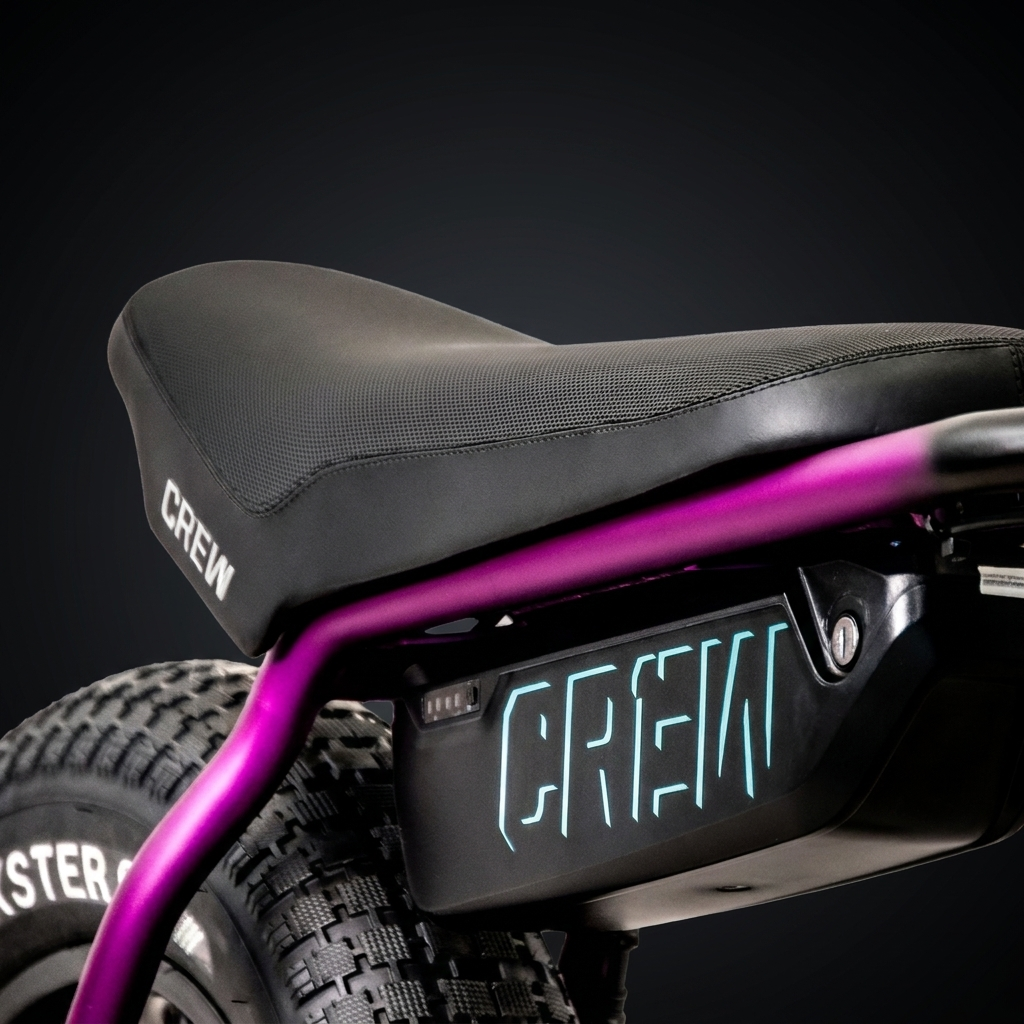

Battery:48V 14Ah Lithium-ion

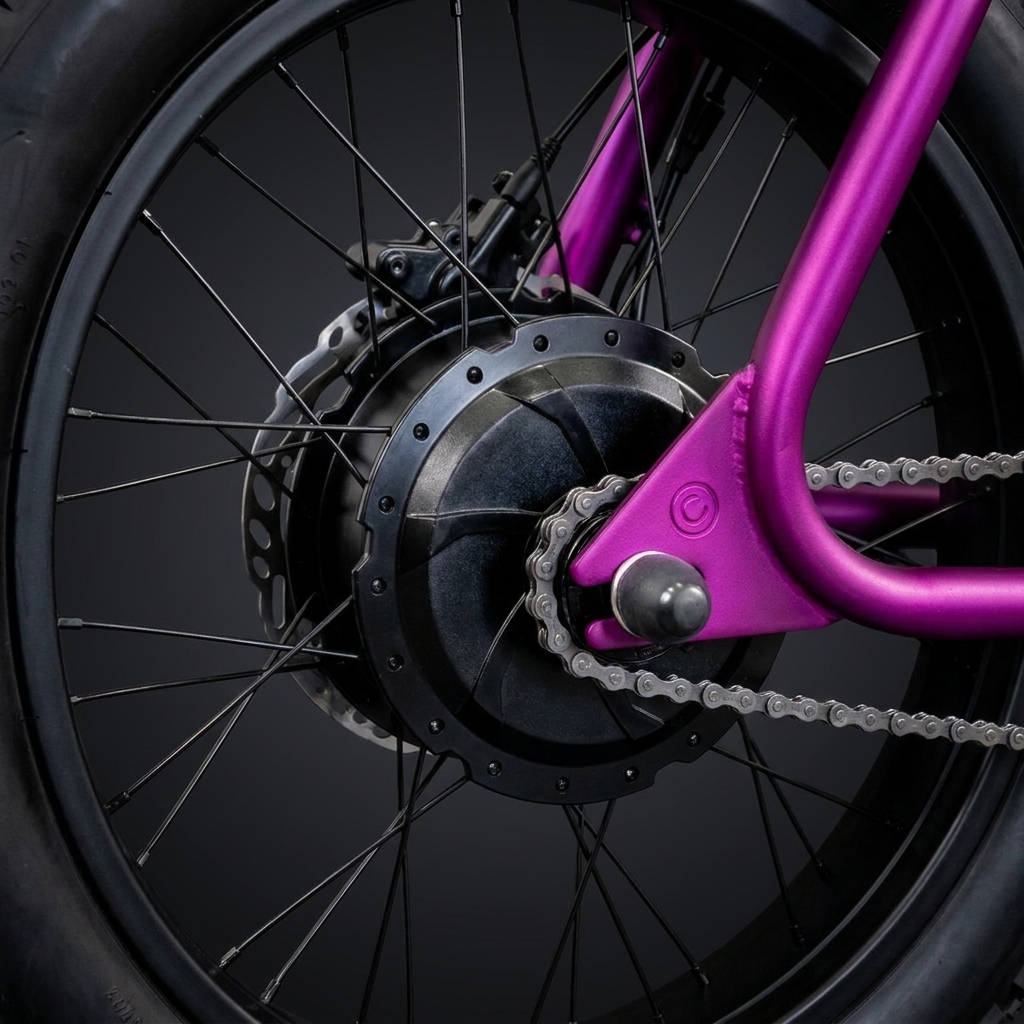

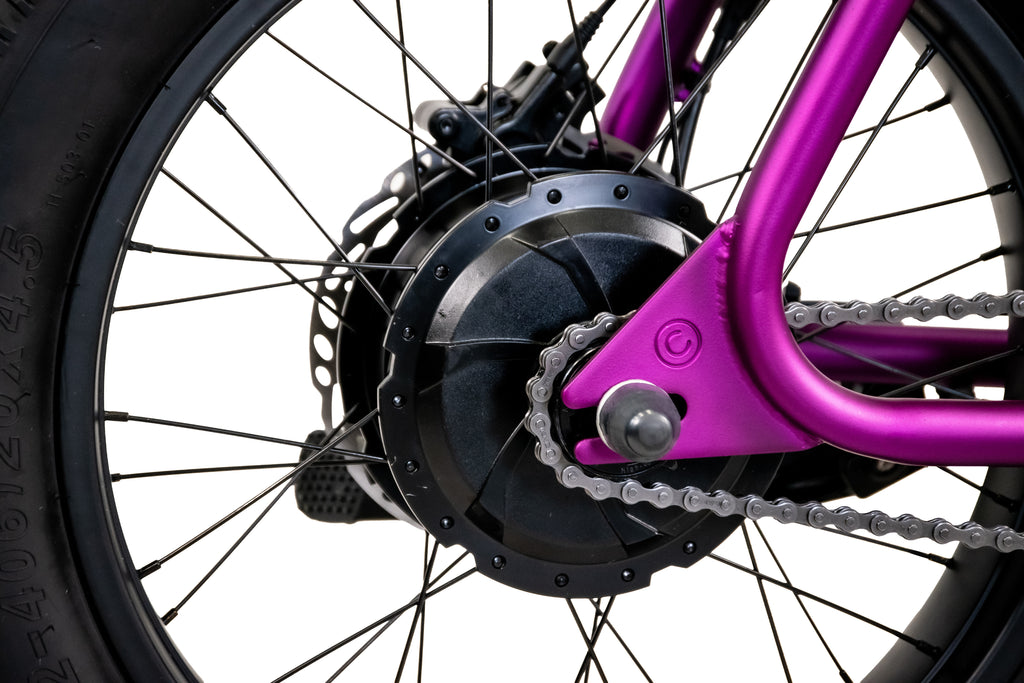

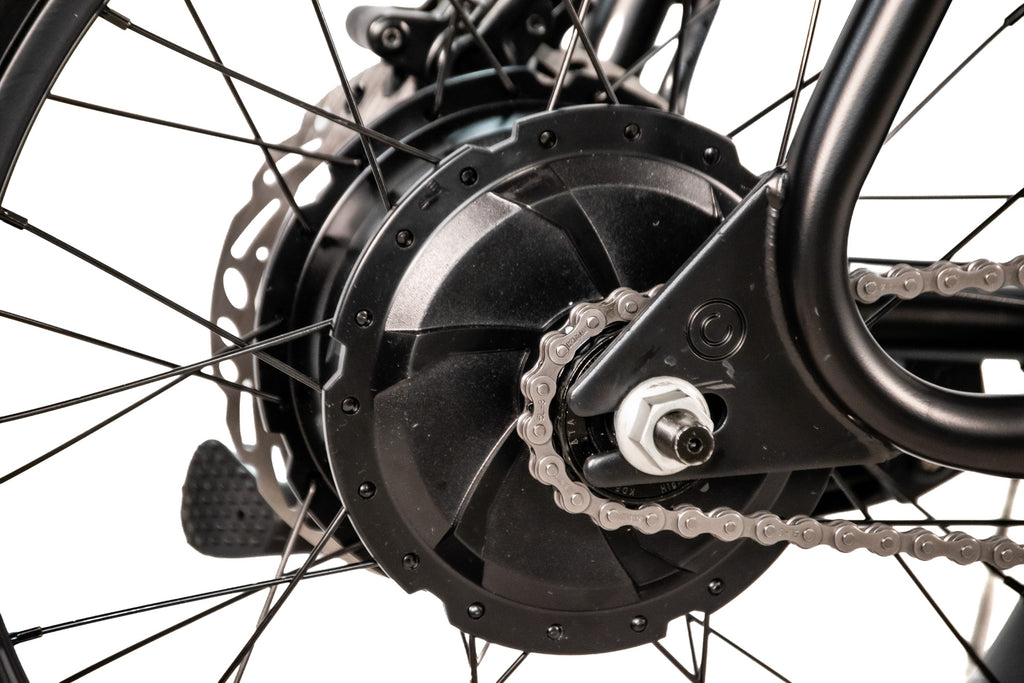

Motor:750W Hub Motor

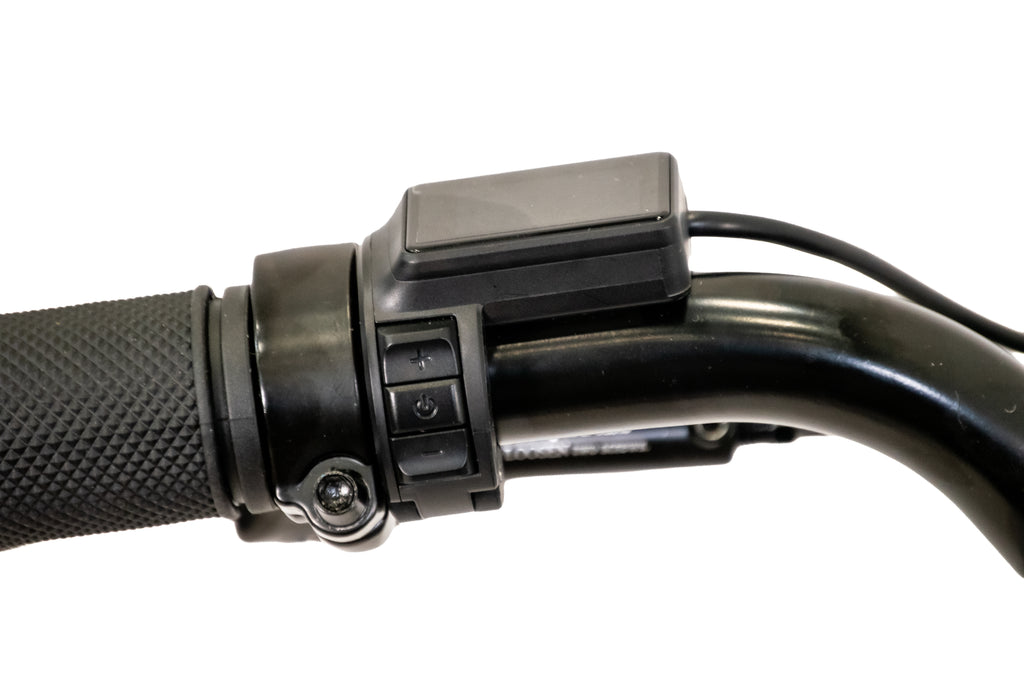

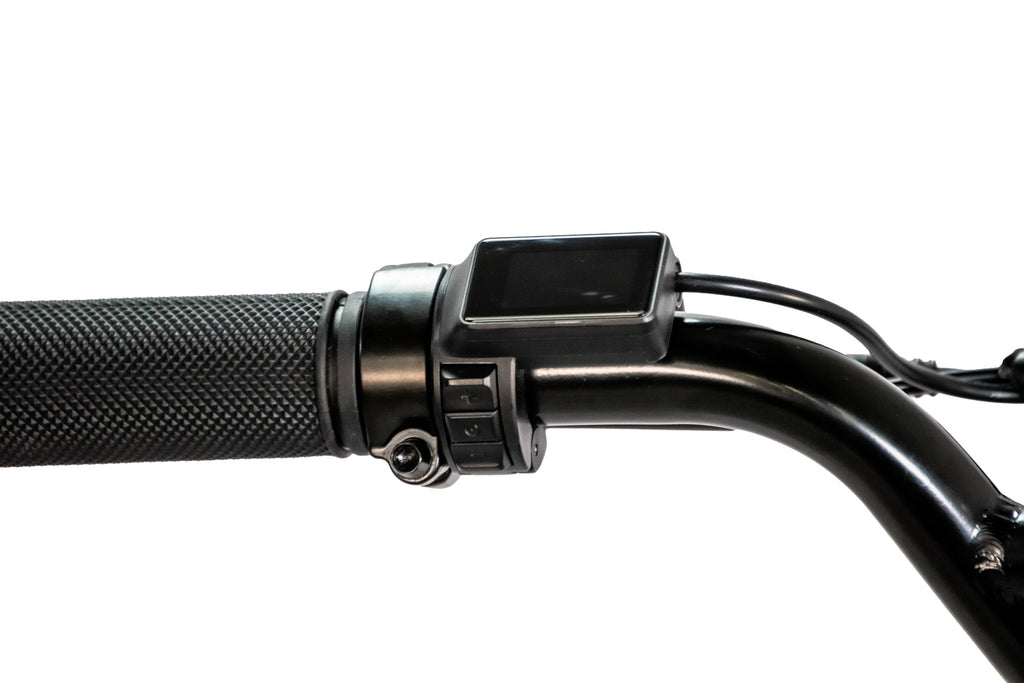

Display:48V LCD Display

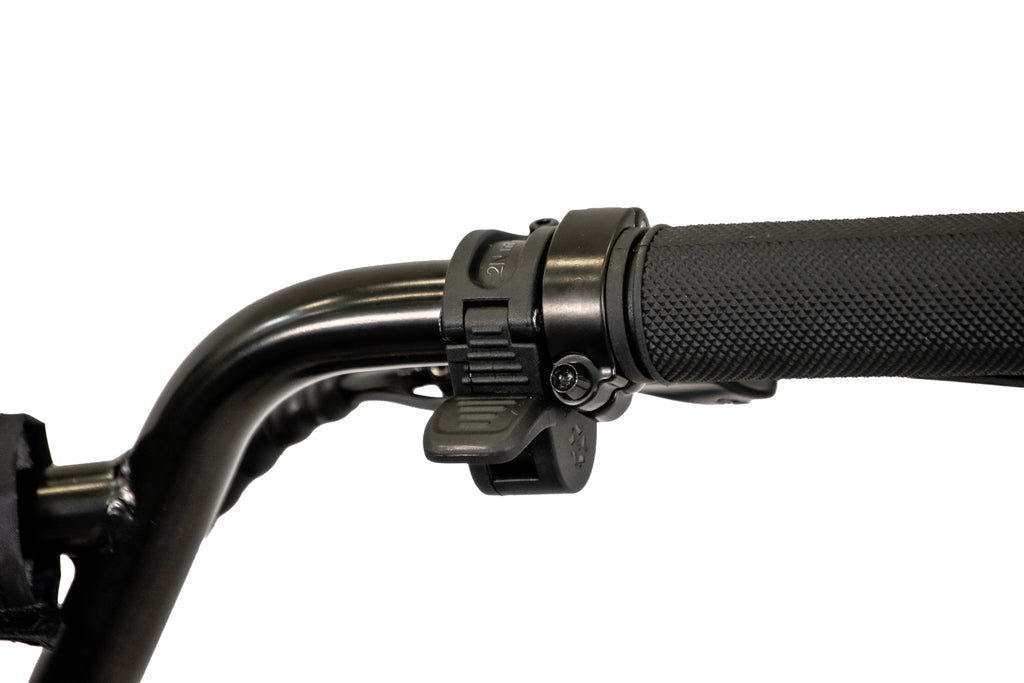

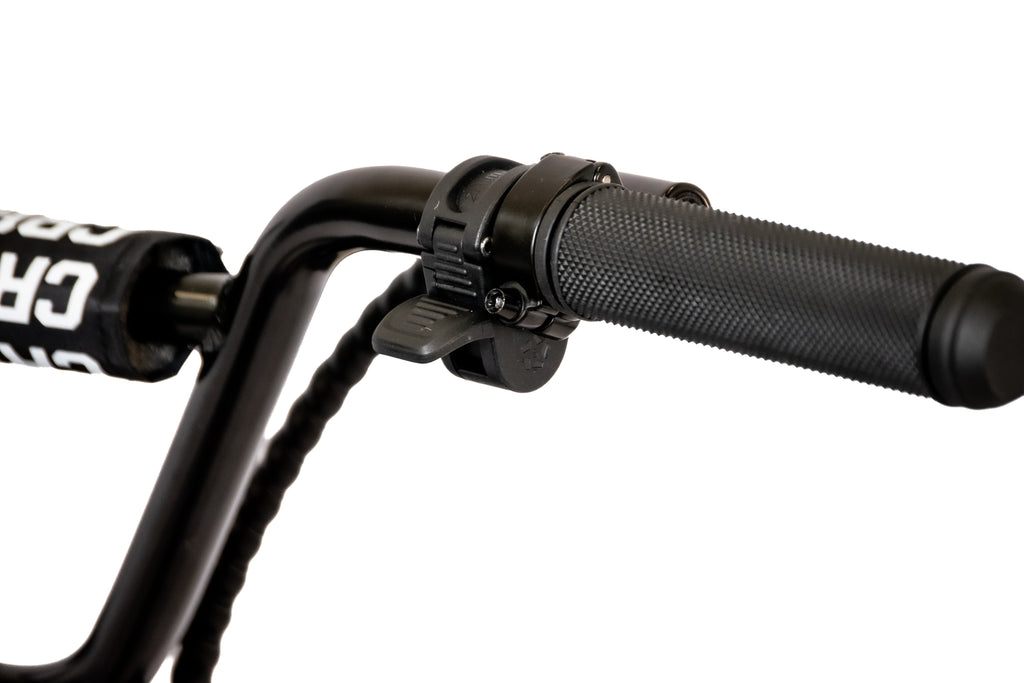

Throttle Style:Thumb Throttle
Controller:48V 750W, 3 Modes – Eco, Sport, Race
Sensor:Pedal Cadence Sensor
Range:Up to 20 miles (throttle). Up to 40 miles depending on PAS mode and terrain
Speed:20 MPH
Charger:48V 2A Charger

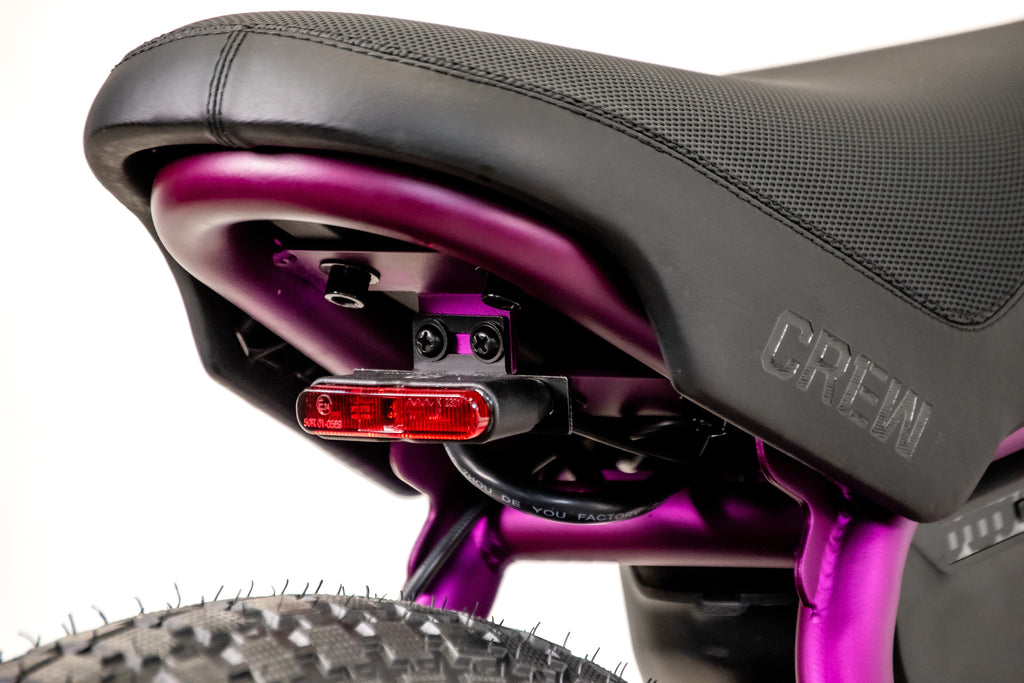

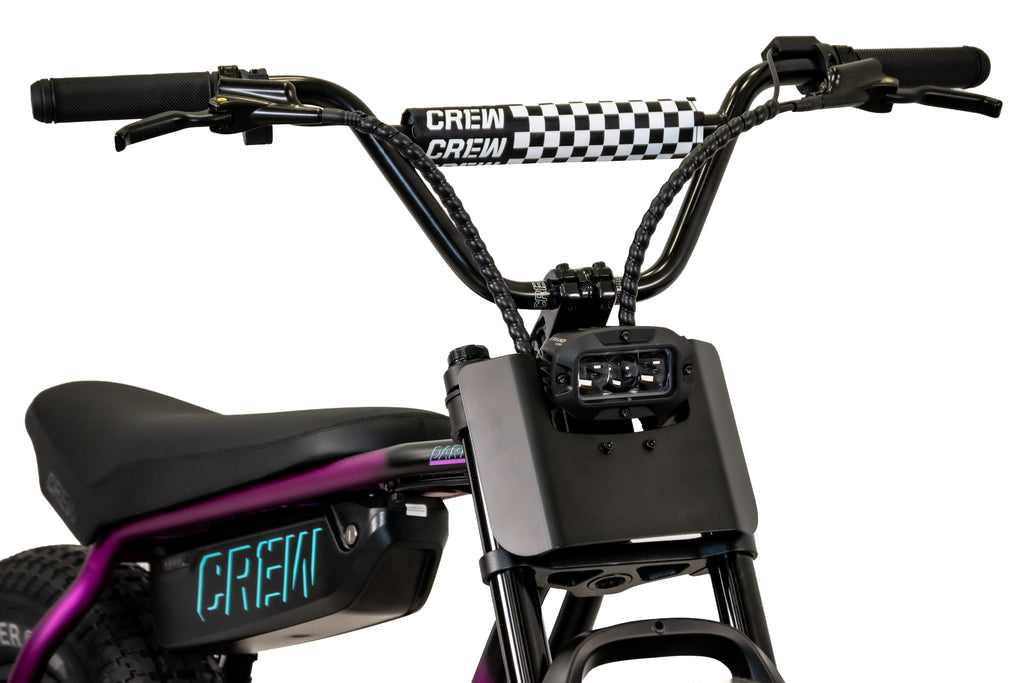

Lights:48V Headlight, Rear LED Taillight
Weight:61 lbs

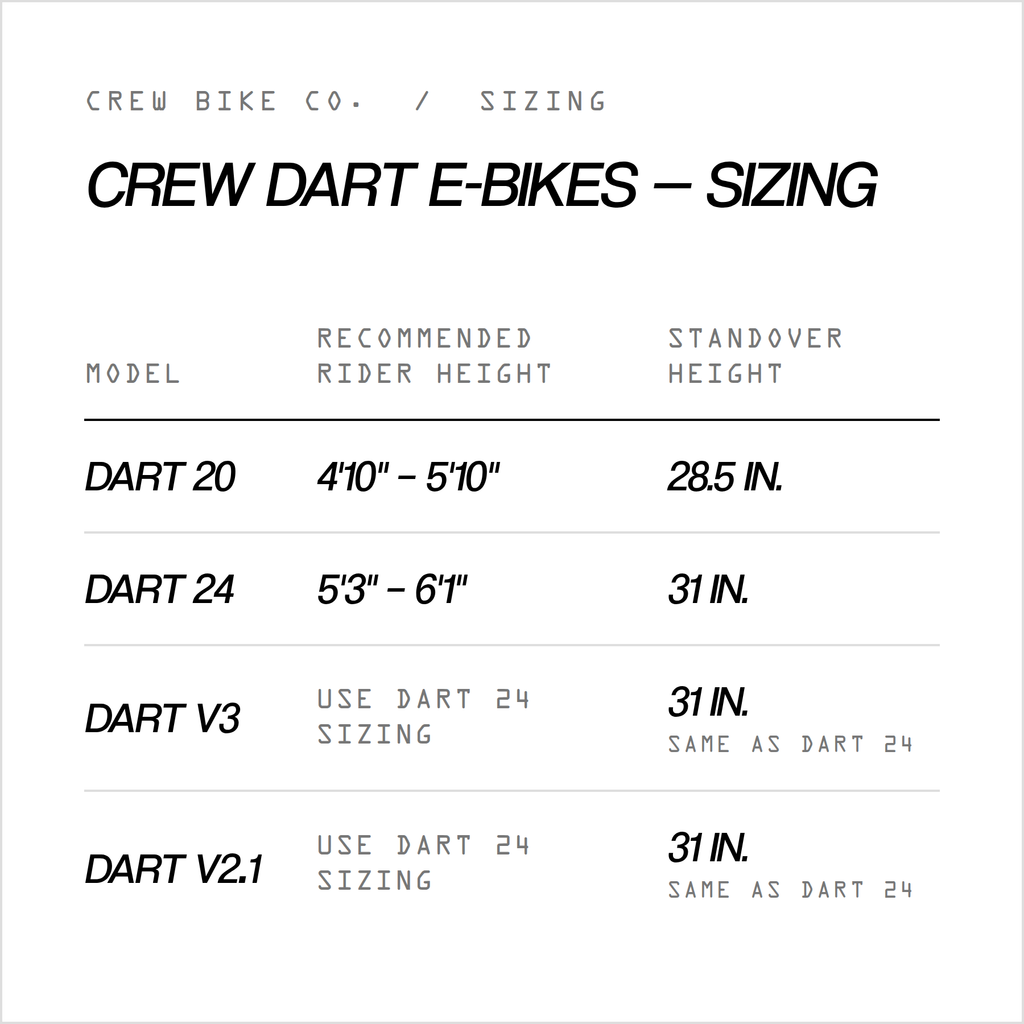

Rider Height:4'10" - 5'10"
Weight Capacity:275 lbs
Handbook:Dart20 Handbook

WARRANTY

All bikes purchased through Crew Bike Co. MUST be assembled
by a certified bike shop mechanic. If the bike is NOT built by a certified bike
shop mechanic, any warranty will be VOID. We will request for an assembly
receipt as proof of professional installation.

For all warranty claims, please contact our
Warranty Team at support@crewbikeco.com.
So that we can help you in a timely manner, make sure to include the following:

1.Order Number (we will confirm date of purchase and determine if the item
is still under the manufacturer’s warranty time limit)

2.Brief description of the claim

3.Photographs

4. If the item is a bike or frame, include the serial number

We evaluate all warranties case-by-case to determine the
best course of action and get you serviced to the best of our ability!

Warranty does not apply to the following:

• Any part of a product that has
been installed, altered, repaired, or misused

• Damage from unintended style of
riding, abuse, neglect, accident, and racing

• Normal wear and tear of any
product (including but not limited to - saddles, grips, tires, tubes, cables,
brake pads, chains)

• Failure to provide regular
maintenance of any product

Labor and shipping are the responsibility of the
customer. We do not cover parts purchased and labor performed by another bike
shop.

Note: Warranty is for original owner only.
