Dart24
OCEV E-MOTOR BIKE
CODE:GET100OFF
48V 14Ah | 750W MOTOR
28MPH TOP SPEED
35 MILE RANGE
24" x 3.0" WHEELS
Dart24
OCEV E-MOTOR BIKE
CODE:GET100OFF
What Is OCEV?
| E-BIKE AND OCEV CLASS SYSTEM | PEDAL ASSIST (TOP SPEED) | THROTTLE | STREET LEGAL* | AGE RESTRICTION** |
|---|---|---|---|---|
| CLASS 1 E-BIKE | 20 MPH | NO | YES | NONE |
| CLASS 2 E-BIKE | 20 MPH | YES | YES | NONE |
| CLASS 3 E-BIKE | 28 MPH | NO | YES | 16+ |
| OCEV (OUT-OF-CLASS ELECTRIC VEHICLE) | 28+ MPH | YES | NO | 18+ |
*E-BIKE LAWS AND REGULATIONS CAN DIFFER BY STATE AND COUNTY, PLEASE FAMILIARIZE YOURSELF WITH THE SPECIFIC LAWS IN YOUR AREA.
**AGE RESTRICTIONS FOR E-BIKES MAY DIFFER BY LOCATION, BE SURE TO REVIEW YOUR LOCAL LAWS TO STAY COMPLIANT

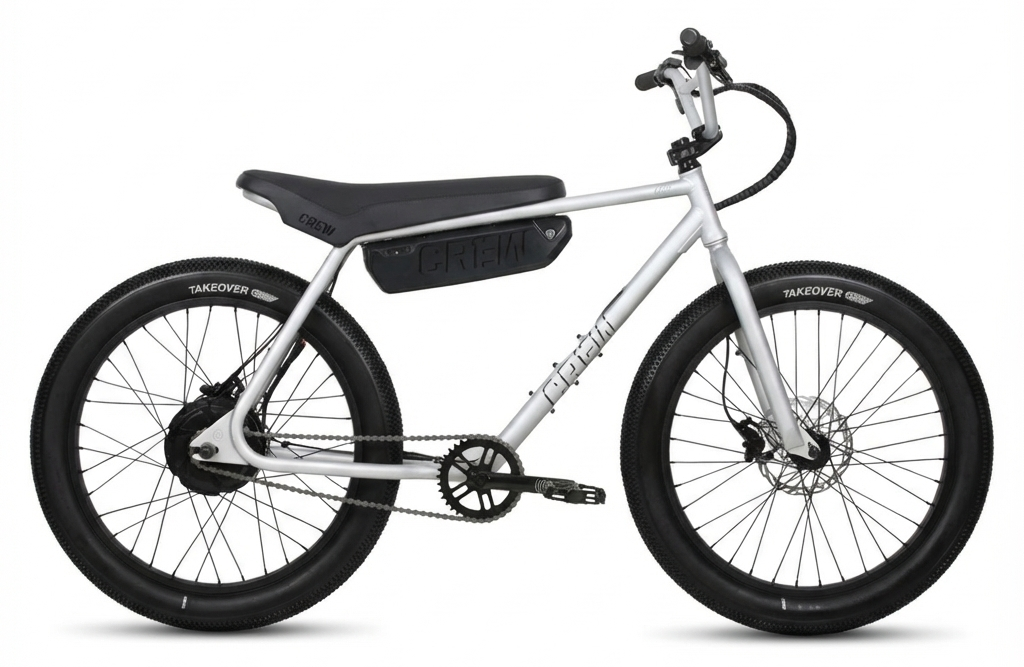

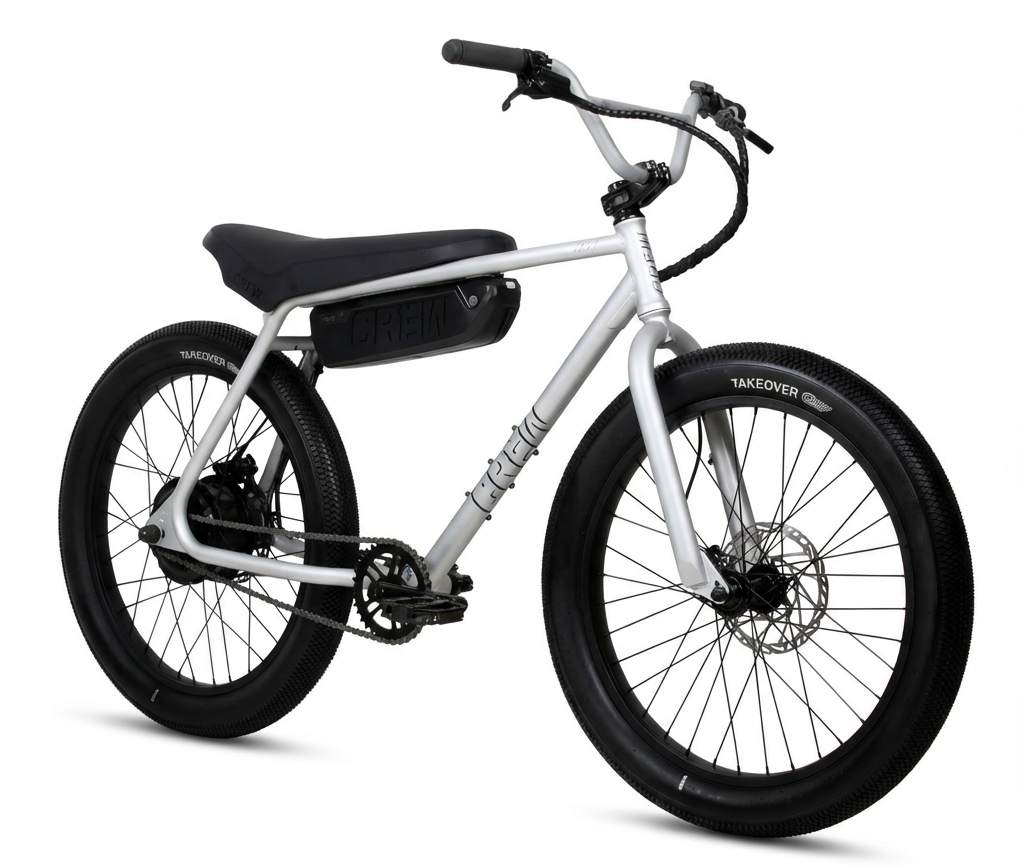

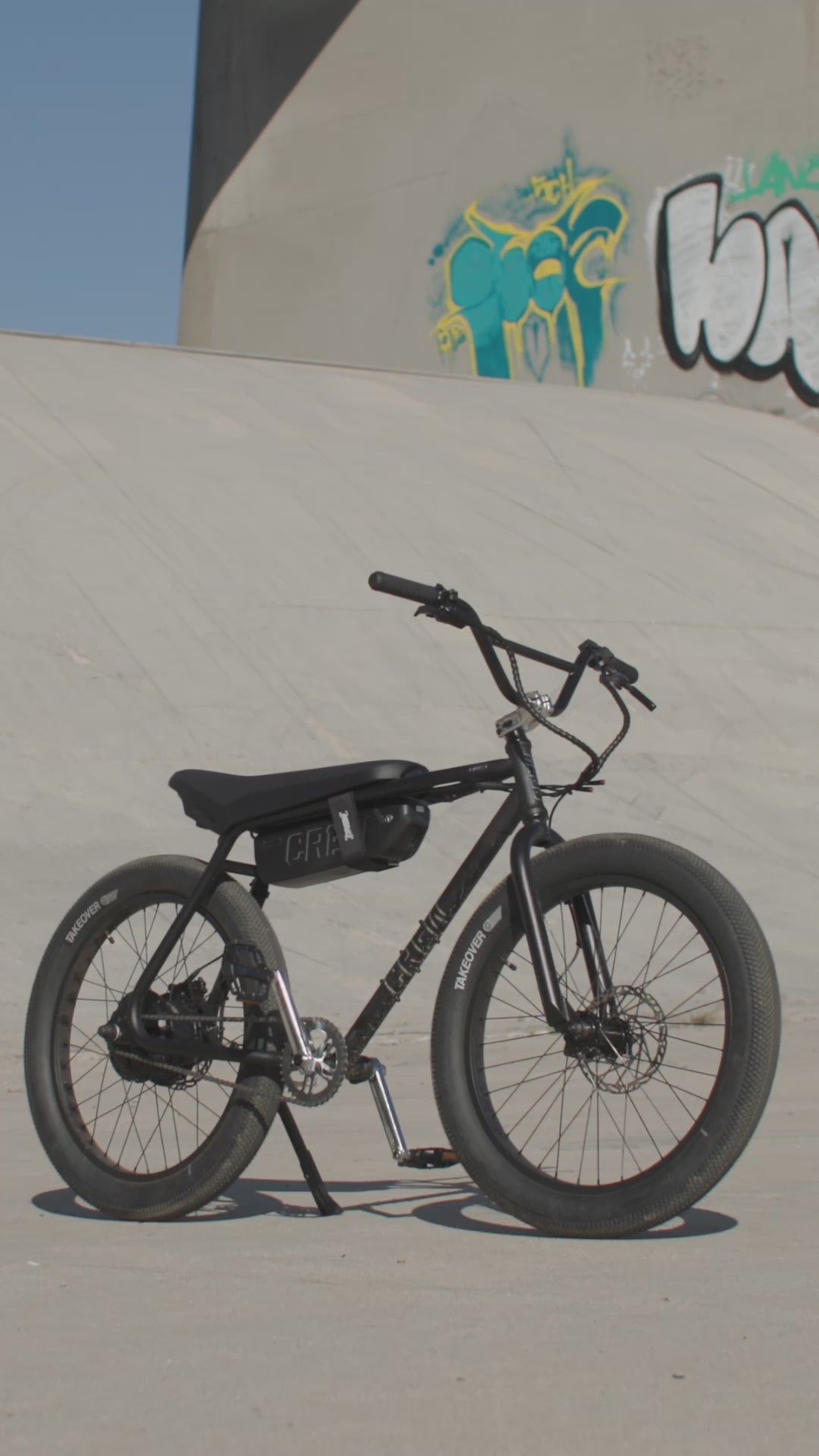

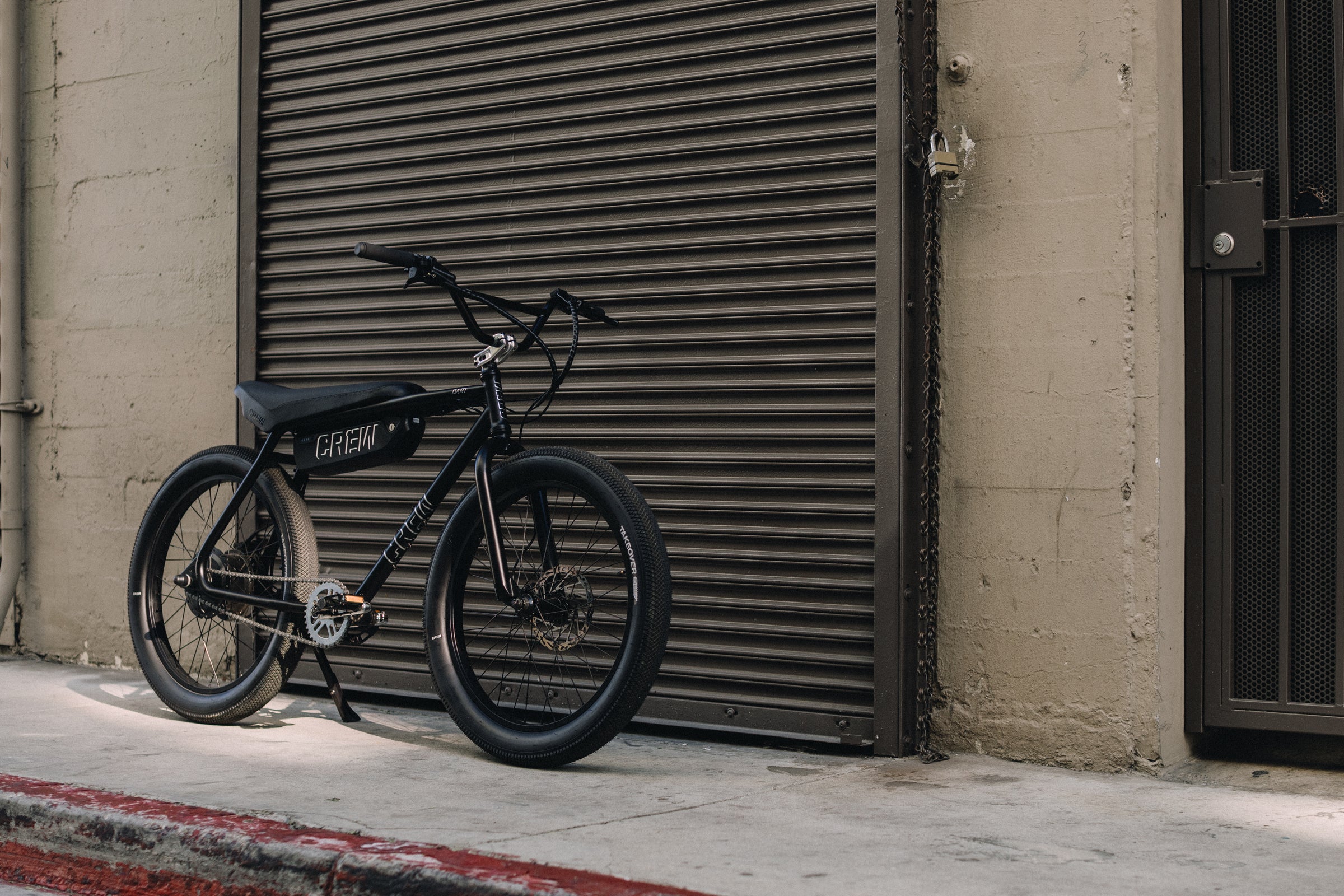

Crew Dart24
The Crew Dart V3 24" takes the proven V2.1 platform and turns it all the way up. Stronger frame. Smoother ride. Smarter design. Every detail has been refined to make this the most dialed Dart yet. With a top speed of 28mph and a range of up to 20 miles on throttle, or 25 to 35 miles depending on PAS mode and terrain, it’s built to go hard and keep rolling.
Built to Push Harder
The upgraded chromoly steel frame brings added strength, better durability, and a more responsive feel. Whether you’re ripping through the city or locking in a wheelie, the new geometry keeps you stable and in control.
New Bench-Style Saddle
For better balance, longer rides, and clean lines. The new saddle delivers comfort and control, with a look that hits. Grippier material and cradled design keeps you locked in while riding.
Real Power, Real Range

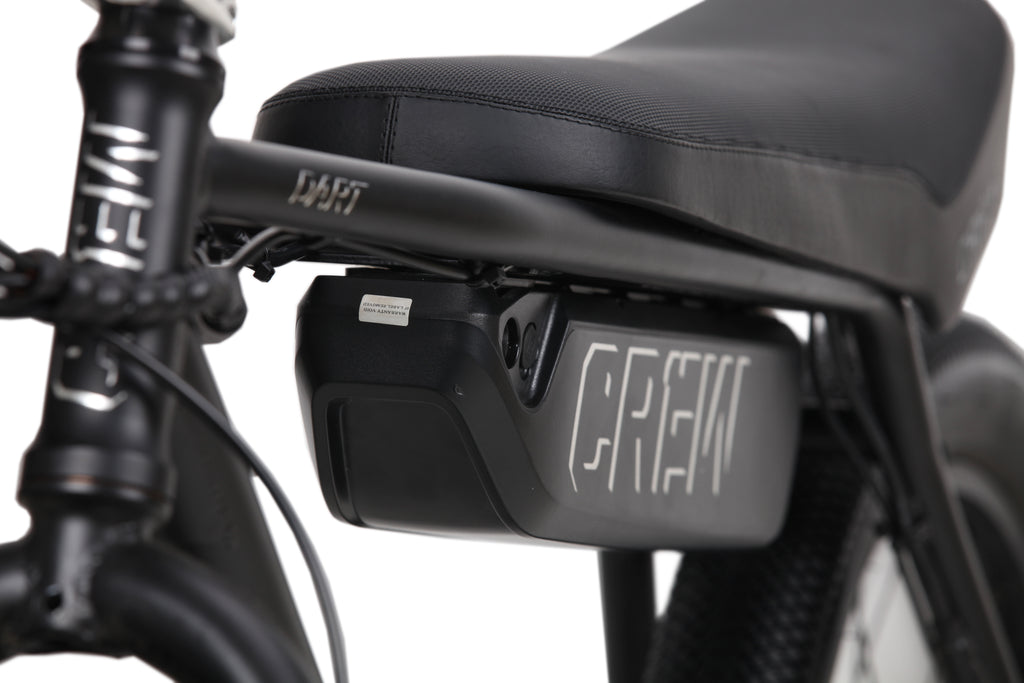

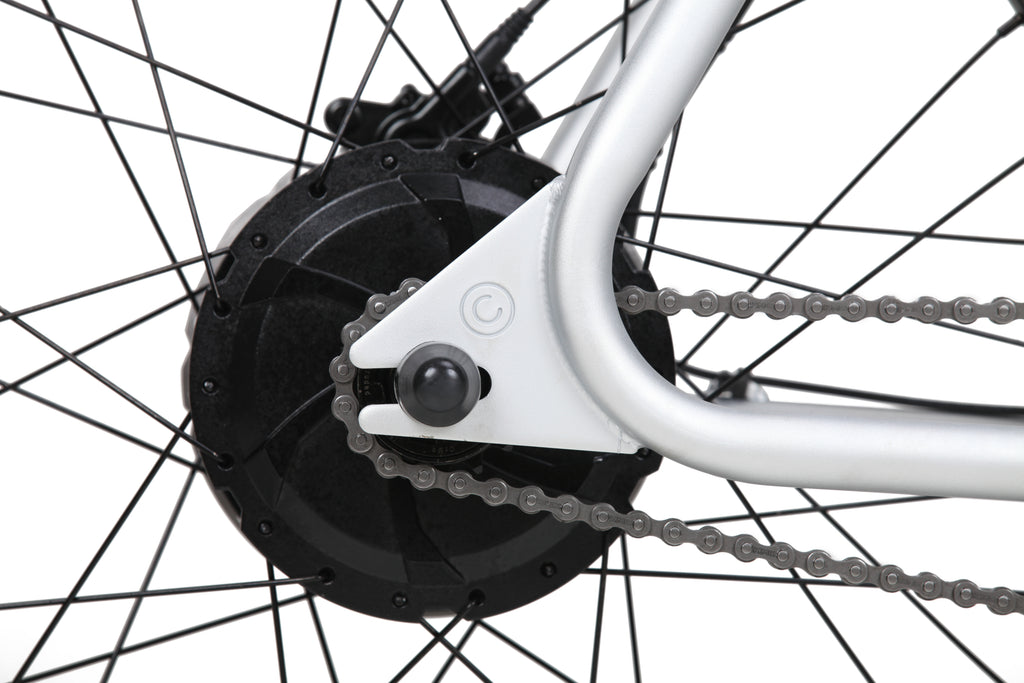

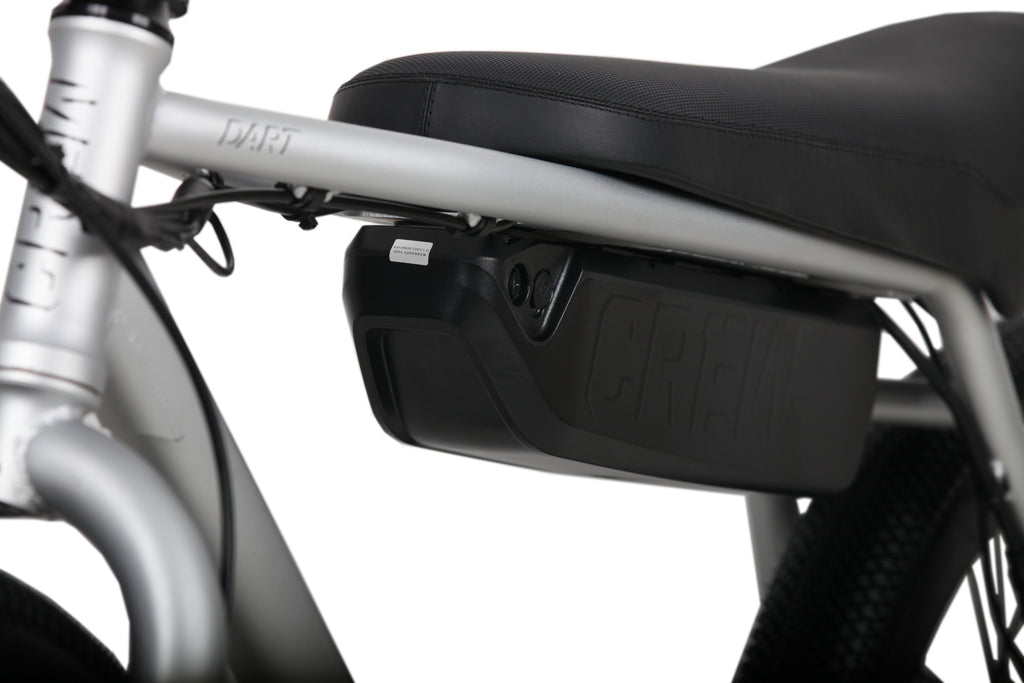

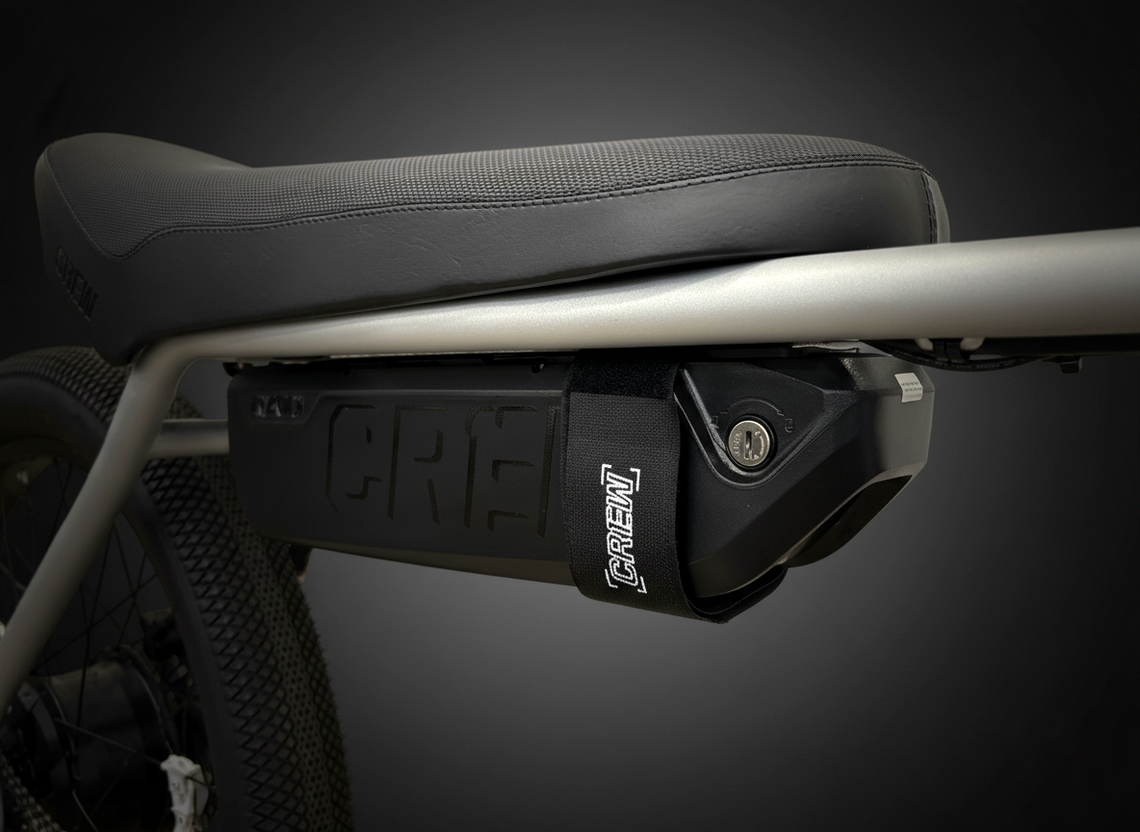

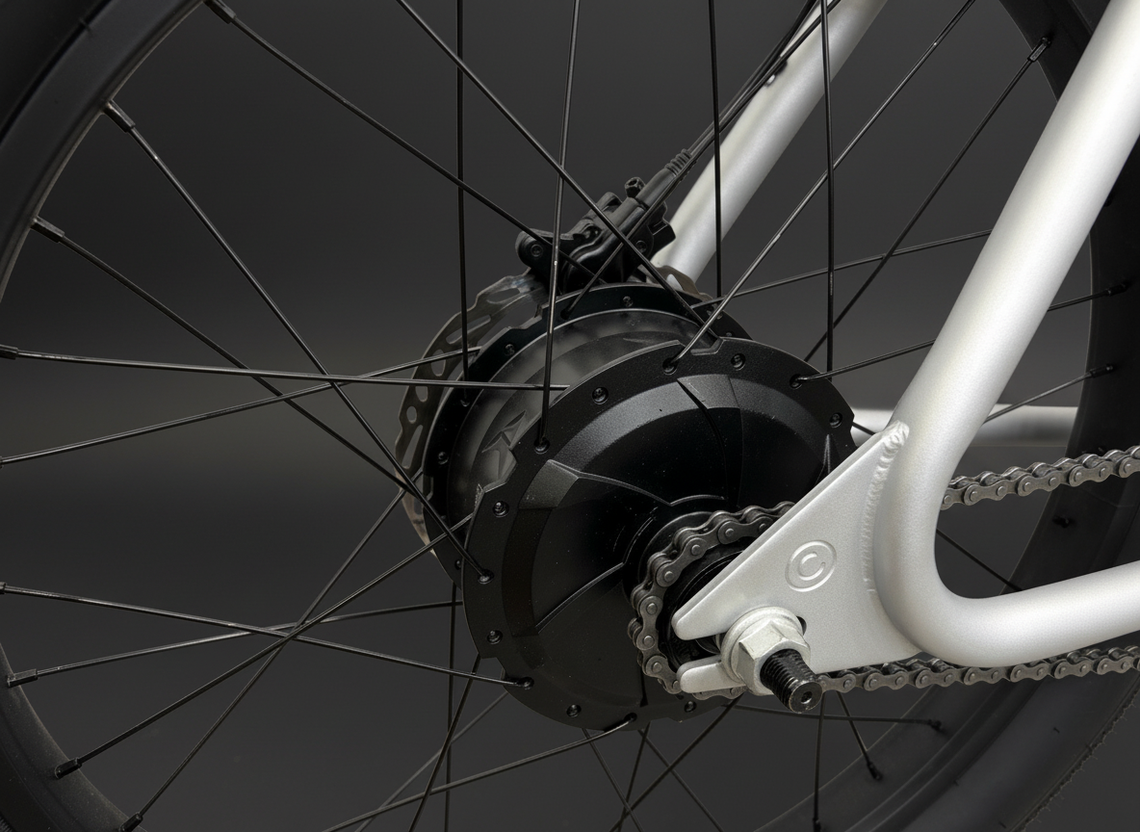

Powered by a 750w rear hub motor and a 48v / 14Ah lithium-ion battery, the Dart V3 hits hard off the line and holds speed with ease. Perfect for everyday bike life or full weekend ride outs.
Stop Strong
Hydraulic disc brakes give you tight, responsive braking power no matter the terrain or speed.

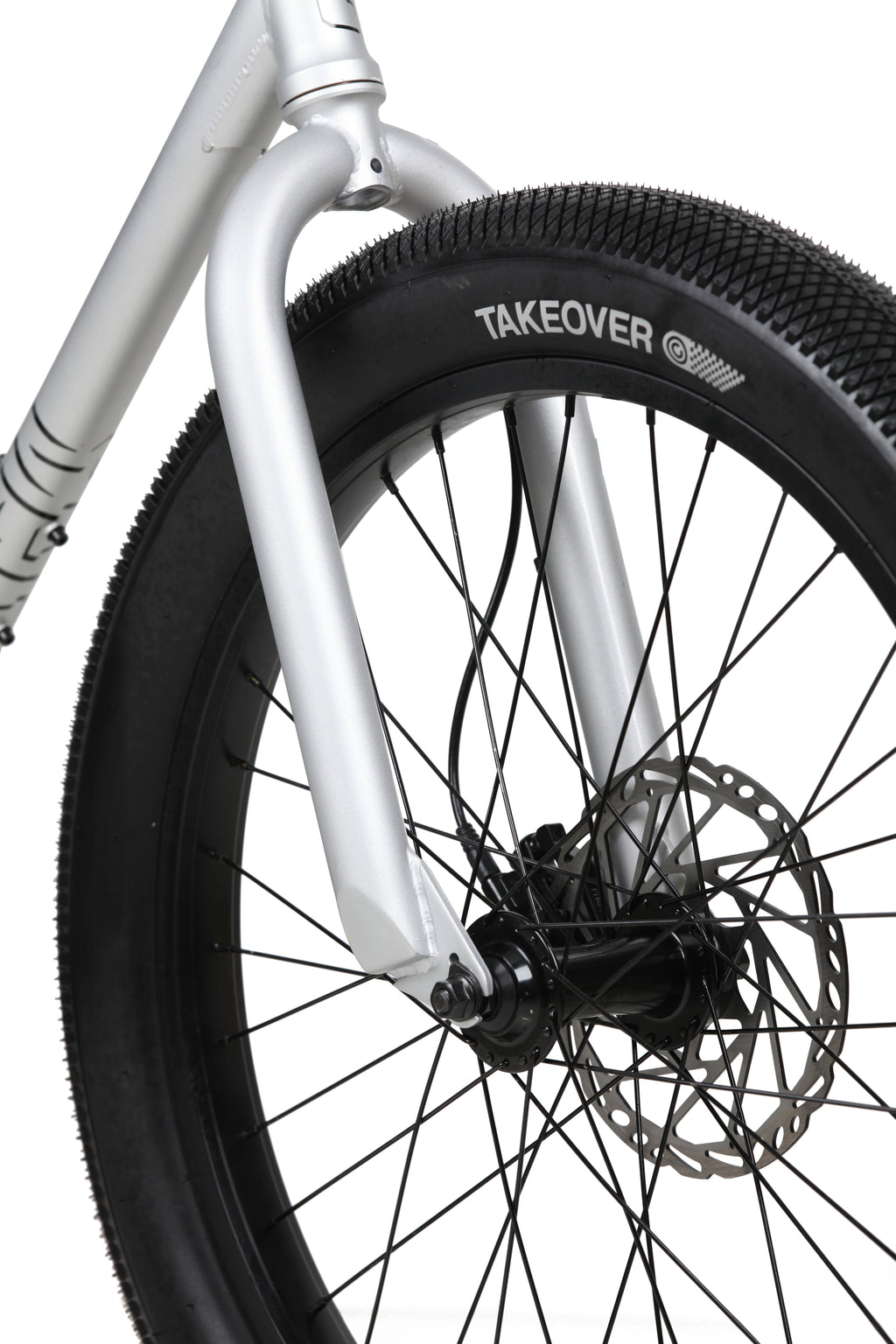

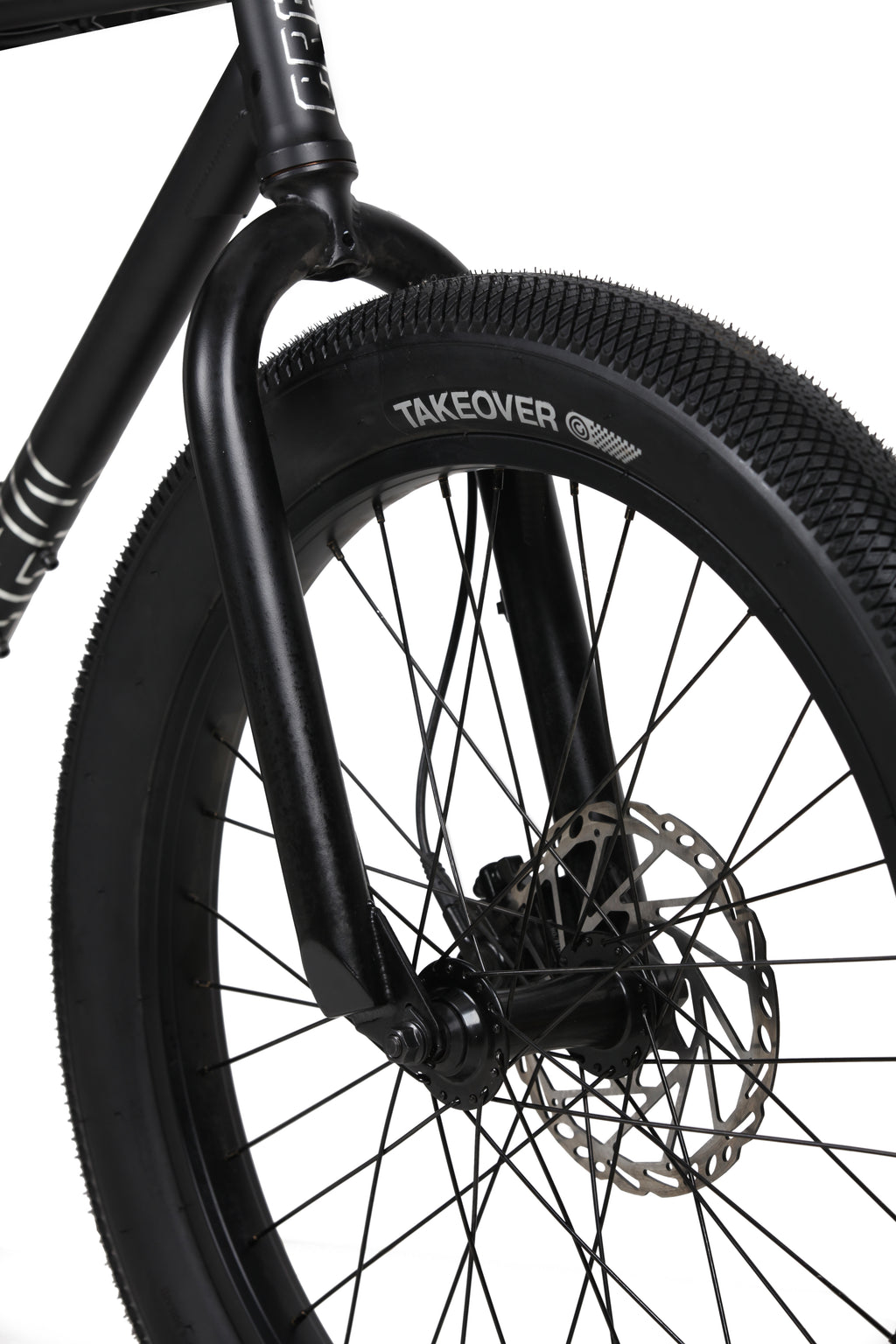

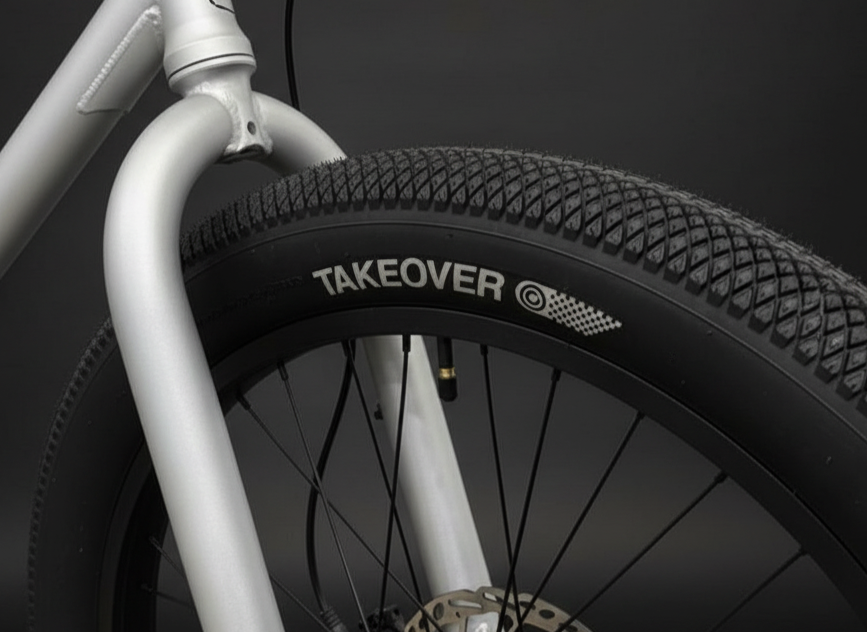

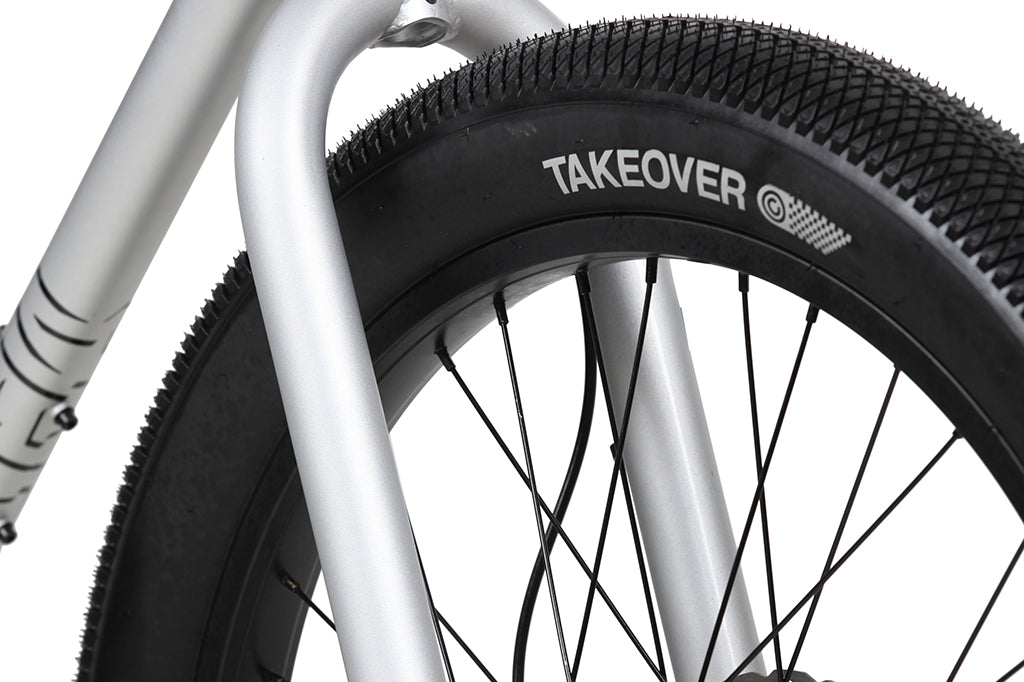

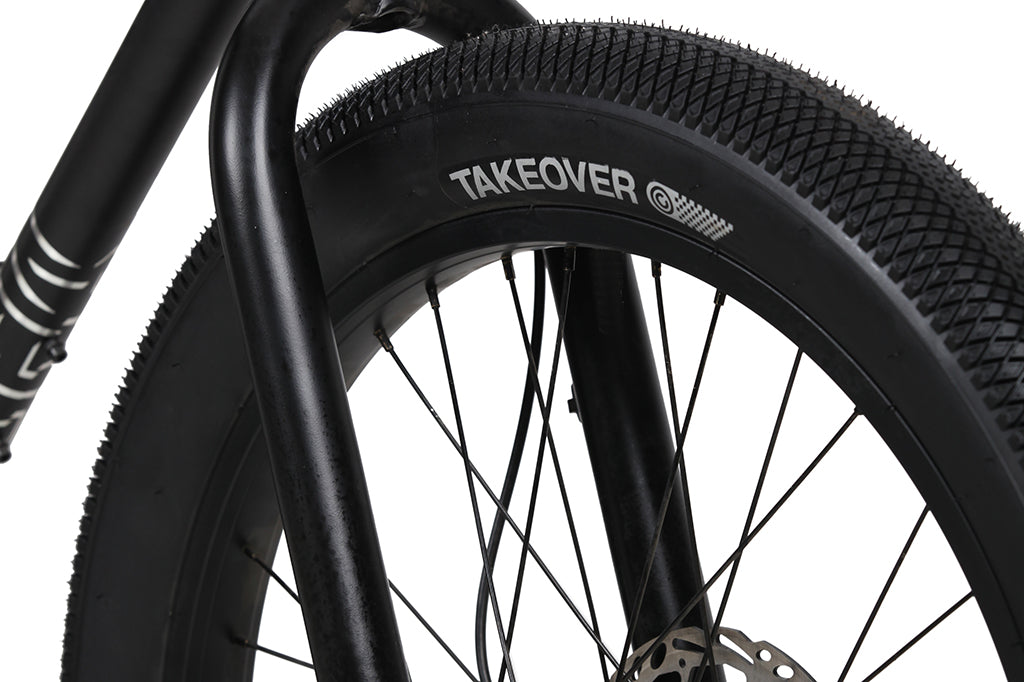

Crew Takeover Tires
Grippy, tough, and made to move. These tires handle pavement and side streets with serious hold.
Specs:
The Dart24 is your new go-to for style, control, and electric power. Made for the streets. Ready for anything.
| Frame: | Chromoly 24” Loop Tail |
|---|---|
| Fork: | Chromoly 24” |

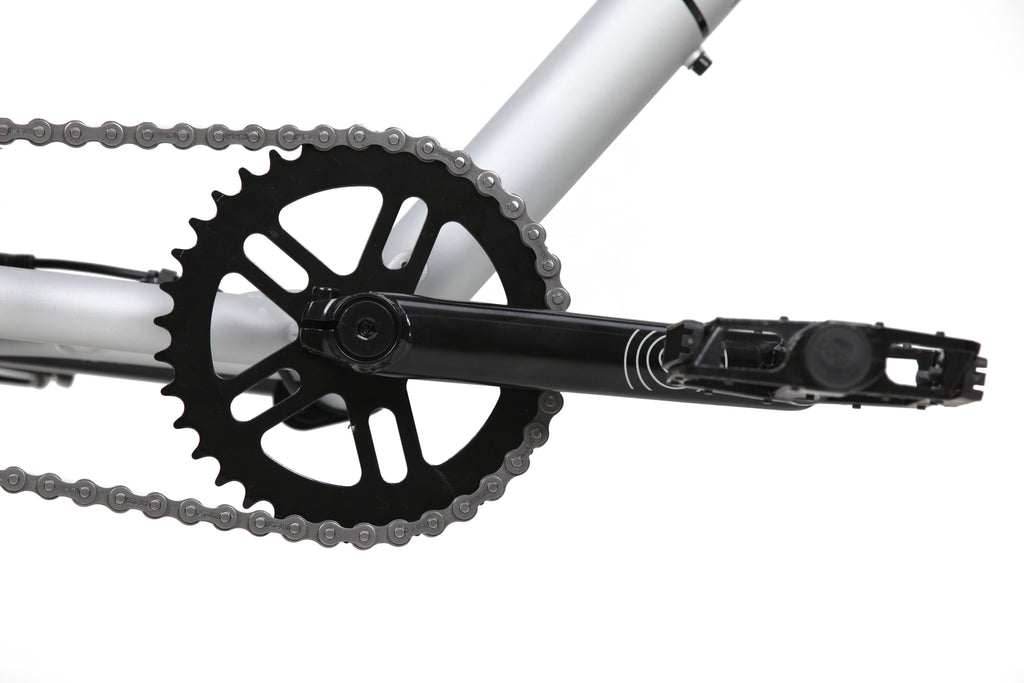

| Crank: | Crew Chromoly 155mm, 36t Chainring |
| Headset: | 1-1/8" Sealed Bearings |
| Wheelset: | 24" Double Wall Rim, Sealed Bearing Hub |
| Chain: | KMC 1/8" Heavy Duty |
| Freewheel: | Chromoly 16t |
| Seat: | Crew Bench Style Seat |
| Stem: | BMX 22.2mm Clamp, 50mm |

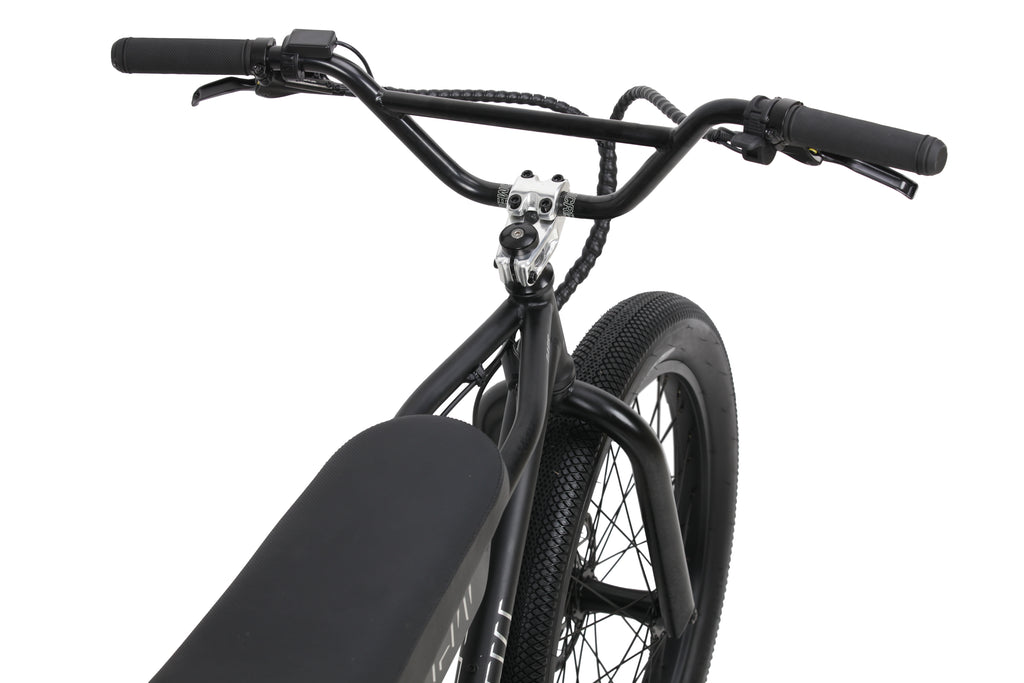

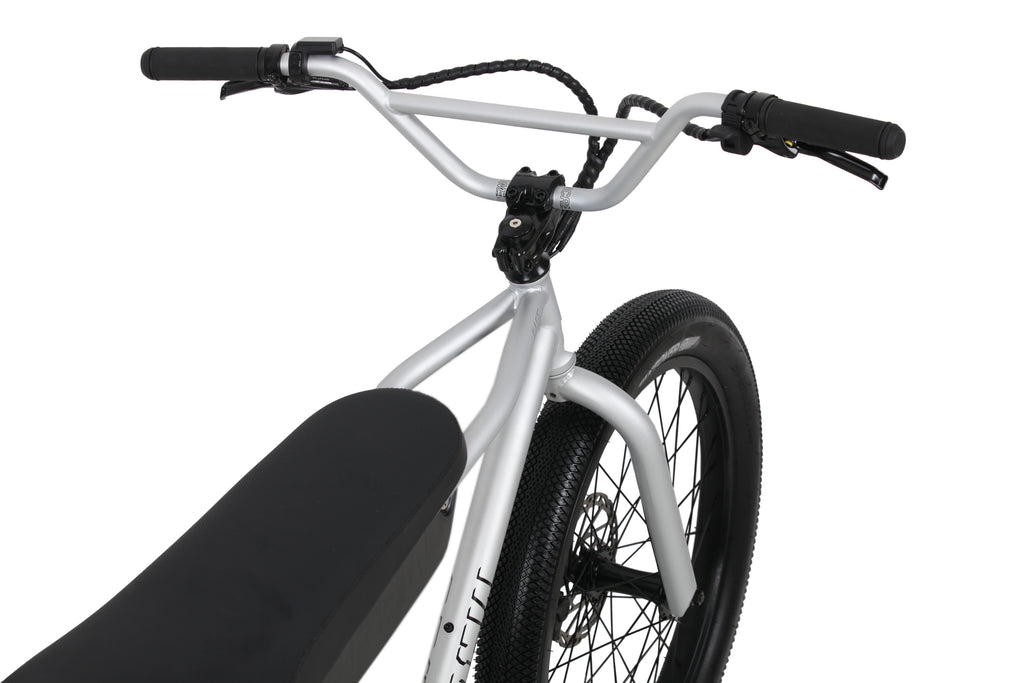

| Handlebars: | Crew MK2-Mid 2-PC Chromoly, 5.5” Rise, 740mm Width, 22.2mm clamp |
| Brakes: | Hydraulic Disc Brakes, F: 180mm Rotor / R: 160mm Rotor |
| Tires: | Crew Takeover 24” × 3.0” |
|---|---|
| Battery: | 48V 14Ah Lithium-ion |
| Motor: | 750W Hub Motor |

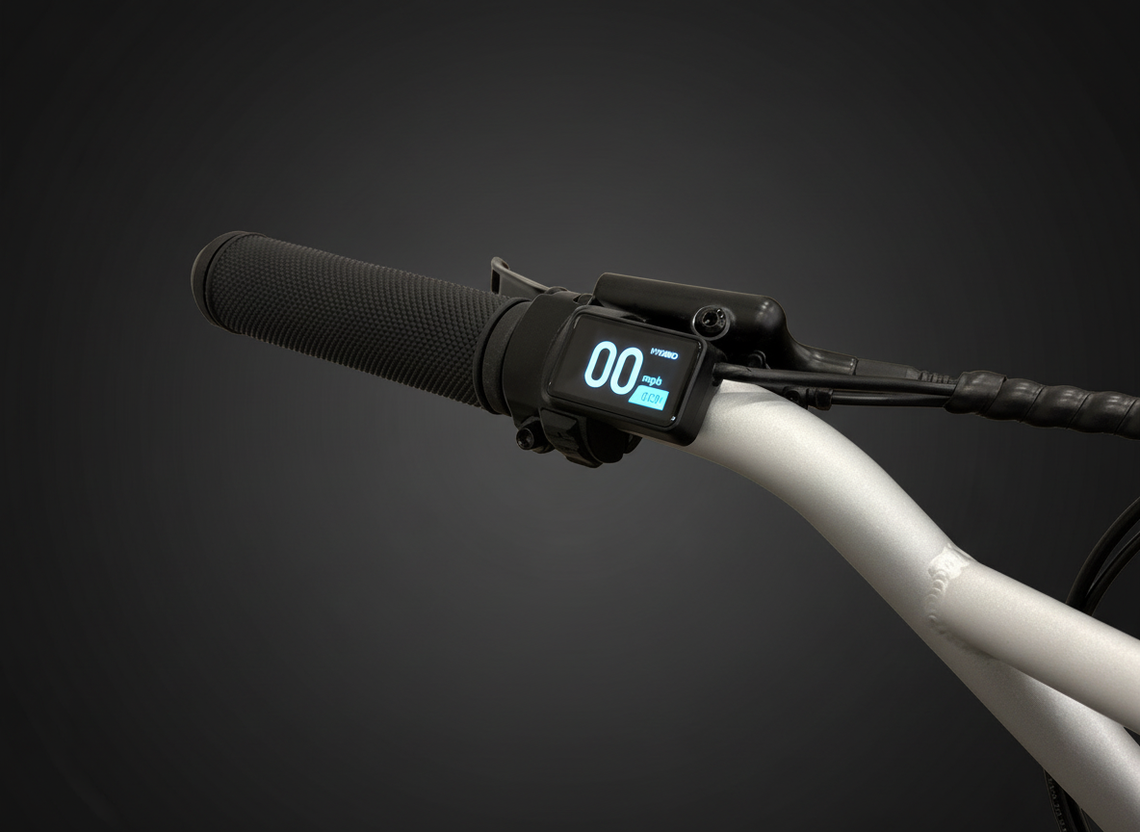

| Display: | 48V LCD Display |
| Throttle Style: | Thumb Throttle |
| Controller: | 48V 750W, 4 Modes – Eco, Sport, Race, Offroad |
| Sensor: | Pedal Cadence Sensor |
| Range: | Up to 20 miles (throttle). 25–35 miles depending on PAS mode and terrain |
| Speed: | Up to 28 MPH (Offroad mode) |
| Charger: | 48V 2A Charger |
| Lights: | Rear LED Taillight |
| Weight: | 64 lbs |
All bikes purchased through Crew Bike Co. MUST be assembled
by a certified bike shop mechanic. If the bike is NOT built by a certified bike
shop mechanic, any warranty will be VOID. We will request for an assembly
receipt as proof of professional installation.
For all warranty claims, please contact our
Warranty Team at support@crewbikeco.com.
So that we can help you in a timely manner, make sure to include the following:
1.Order Number (we will confirm date of purchase and determine if the item
is still under the manufacturer’s warranty time limit)
2.Brief description of the claim
3.Photographs
4. If the item is a bike or frame, include the serial number
We evaluate all warranties case-by-case to determine the
best course of action and get you serviced to the best of our ability!
Warranty does not apply to the following:
• Any part of a product that has
been installed, altered, repaired, or misused
• Damage from unintended style of
riding, abuse, neglect, accident, and racing
• Normal wear and tear of any
product (including but not limited to - saddles, grips, tires, tubes, cables,
brake pads, chains)
• Failure to provide regular
maintenance of any product
Labor and shipping are the responsibility of the
customer. We do not cover parts purchased and labor performed by another bike
shop.
Note: Warranty is for original owner only.
